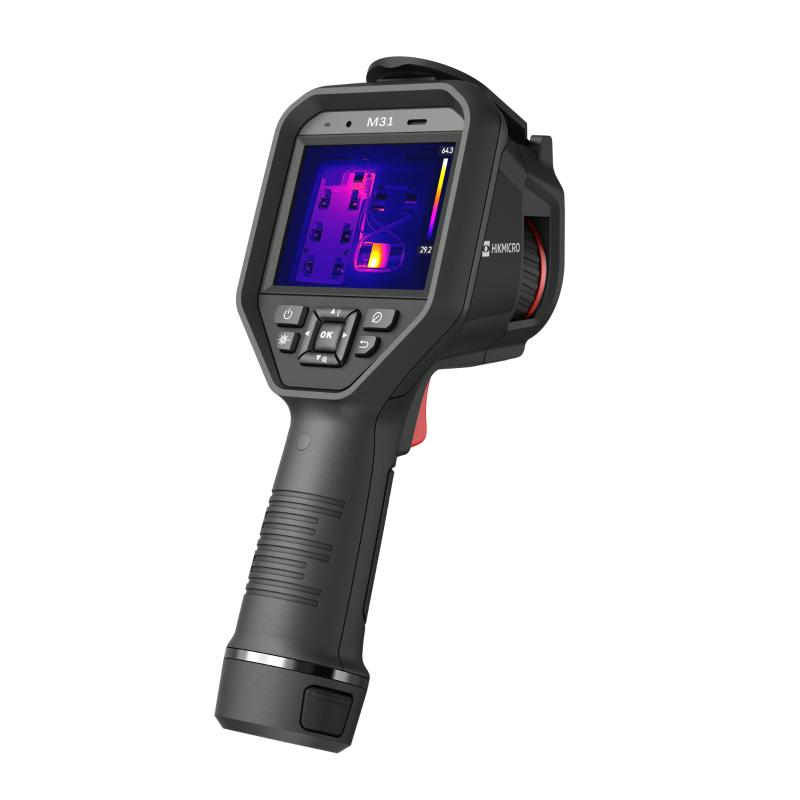

HIKMICRO M31 handheld camera is specially designed for temperature measurement. It’s equipped with a 384 x 288 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.
KEY FEATURE
- High sensitivity thermal module with 384 x 288 resolution
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Supports multiple palettes
- High quality optical module with 8 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
- Wide temperature measurement range: -20°C ~650°C
- High temperature measurement accuracy: Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
- 640 x 480 resolution 3.5'' LCD touch display
- Long-distance laser light supplement for thermography targets
- LED light supplement makes the device a torch in required scenarios
- Supports 1.0x to 8.0x continuous digital zoom
Infrared Image | |||||||||||||
IR Resolution | 384 x 288 (110,592 pixels) | ||||||||||||
SuperIR | 768 x 576 (442,368 pixels) | ||||||||||||
NETD | < 35 mK (@ 25 °C, F#=1.0) | ||||||||||||
Image Frequency | 30Hz | ||||||||||||
Detector Pitch | 12 μm | ||||||||||||
Spectral Range | 7.5 to 14 μm | ||||||||||||
Focal Length | 6.4mm | ||||||||||||
F-number | F1.0 | ||||||||||||
Field of View (FOV) | 41.1°×30.5° | ||||||||||||
Spatial Resolution (IFOV) | 1.87 mrad | ||||||||||||
Min. Focus Distance | 0.1 m (0.32ft) | ||||||||||||
Focus Mode | Manual Focus | ||||||||||||
Image Display | |||||||||||||
Visual Camera | 3264 × 2448 (8 MP) | ||||||||||||
Display | 640 × 480 Resolution, 3.5" LCD Touch Screen | ||||||||||||
Screen Brightness | Manual | ||||||||||||
Digital Zoom | 1.0x to 8.0x continuous | ||||||||||||
Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red, Condensation Alarm |
||||||||||||
Focus Mode Palette | Above/Below/Interval | ||||||||||||
Color Alarm | Above/Below/Interval/Insulation | ||||||||||||
Image Modes | Thermal/Visual/Fusion/PIP/Blending | ||||||||||||
Measurement and Analysis | |||||||||||||
Object Temperature Range | Range -20°C to 150°C(-4°F to 302°F) Range 0°C to 650°C(32°F to 1202°F) |
||||||||||||
Accuracy | Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F) |
||||||||||||
Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles |
||||||||||||
Level and Span Mode | Auto/Manual/1-Tap Touch-screen | ||||||||||||
SuperScene+ | Electrical Panel, PCB Inspection | ||||||||||||
Data Storage and Communication | |||||||||||||
Image Storage Capacity | Approx. 100,000 Images (8MP) | ||||||||||||
Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note;Tag note; Sketch; |
||||||||||||
Video Storage Capacity | MP4 video max. 400h; Radiometric video max. 50h |
||||||||||||
Video File Format | MP4 video and radiometric video | ||||||||||||
Radiometric Infrared-Video Streaming (Compressed) |
Over UVC, Wi-Fi | ||||||||||||
Extendable Memory Card | Extendable 64 GB Micro SD Card | ||||||||||||
General | |||||||||||||
Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) | ||||||||||||
Bluetooth | Bluetooth 4.2 | ||||||||||||
USB Interface | USB Type-C | ||||||||||||
LED Light | Yes | ||||||||||||
Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW | ||||||||||||
Battery Type | Interchangeable and rechargeable Li-ion battery | ||||||||||||
Battery Operating Time | Approx. 4 hours | ||||||||||||
Battery Charging Time | Approx. 4 hours fully charged | ||||||||||||
Power Saving Mode | Yes | ||||||||||||
Protection Level | IP54 | ||||||||||||
Drop Test Height | 2 m (6.56 ft) | ||||||||||||
Safety | IEC 61010-1 | ||||||||||||
EMC | EN 301489-1, EN 301489-17, EN IEC 61000-6-2, EN IEC 61000-6-3,EN 61326-1 |
||||||||||||
Vibration | 2 g, IEC 60068-2-6 | ||||||||||||
Warranty | 3 years for the full product, 10 years for the detector, and 2 years for the battery. |
||||||||||||
Shock | 25 g, IEC 60068-2-27 | ||||||||||||
Working Temperature Range | -20°C to 50°C (-4°F to 122°F) | ||||||||||||
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) | ||||||||||||
Relative Humidity | < 95% non-condensing | ||||||||||||
Weight | Approx. 720g (1.59 lb) | ||||||||||||
Dimension | 244 × 100 × 104 mm (9.6 × 3.9 × 4.1 in) | ||||||||||||
Tripod Mounting | UNC ¼”-20 |
Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
HIKMICRO M31 handheld camera is specially designed for temperature measurement. It’s equipped with a 384 x 288 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.
KEY FEATURE
- High sensitivity thermal module with 384 x 288 resolution
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Supports multiple palettes
- High quality optical module with 8 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
- Wide temperature measurement range: -20°C ~650°C
- High temperature measurement accuracy: Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
- 640 x 480 resolution 3.5'' LCD touch display
- Long-distance laser light supplement for thermography targets
- LED light supplement makes the device a torch in required scenarios
- Supports 1.0x to 8.0x continuous digital zoom
Infrared Image | |||||||||||||
IR Resolution | 384 x 288 (110,592 pixels) | ||||||||||||
SuperIR | 768 x 576 (442,368 pixels) | ||||||||||||
NETD | < 35 mK (@ 25 °C, F#=1.0) | ||||||||||||
Image Frequency | 30Hz | ||||||||||||
Detector Pitch | 12 μm | ||||||||||||
Spectral Range | 7.5 to 14 μm | ||||||||||||
Focal Length | 6.4mm | ||||||||||||
F-number | F1.0 | ||||||||||||
Field of View (FOV) | 41.1°×30.5° | ||||||||||||
Spatial Resolution (IFOV) | 1.87 mrad | ||||||||||||
Min. Focus Distance | 0.1 m (0.32ft) | ||||||||||||
Focus Mode | Manual Focus | ||||||||||||
Image Display | |||||||||||||
Visual Camera | 3264 × 2448 (8 MP) | ||||||||||||
Display | 640 × 480 Resolution, 3.5" LCD Touch Screen | ||||||||||||
Screen Brightness | Manual | ||||||||||||
Digital Zoom | 1.0x to 8.0x continuous | ||||||||||||
Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red, Condensation Alarm |
||||||||||||
Focus Mode Palette | Above/Below/Interval | ||||||||||||
Color Alarm | Above/Below/Interval/Insulation | ||||||||||||
Image Modes | Thermal/Visual/Fusion/PIP/Blending | ||||||||||||
Measurement and Analysis | |||||||||||||
Object Temperature Range | Range -20°C to 150°C(-4°F to 302°F) Range 0°C to 650°C(32°F to 1202°F) |
||||||||||||
Accuracy | Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F) |
||||||||||||
Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles |
||||||||||||
Level and Span Mode | Auto/Manual/1-Tap Touch-screen | ||||||||||||
SuperScene+ | Electrical Panel, PCB Inspection | ||||||||||||
Data Storage and Communication | |||||||||||||
Image Storage Capacity | Approx. 100,000 Images (8MP) | ||||||||||||
Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note;Tag note; Sketch; |
||||||||||||
Video Storage Capacity | MP4 video max. 400h; Radiometric video max. 50h |
||||||||||||
Video File Format | MP4 video and radiometric video | ||||||||||||
Radiometric Infrared-Video Streaming (Compressed) |
Over UVC, Wi-Fi | ||||||||||||
Extendable Memory Card | Extendable 64 GB Micro SD Card | ||||||||||||
General | |||||||||||||
Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) | ||||||||||||
Bluetooth | Bluetooth 4.2 | ||||||||||||
USB Interface | USB Type-C | ||||||||||||
LED Light | Yes | ||||||||||||
Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW | ||||||||||||
Battery Type | Interchangeable and rechargeable Li-ion battery | ||||||||||||
Battery Operating Time | Approx. 4 hours | ||||||||||||
Battery Charging Time | Approx. 4 hours fully charged | ||||||||||||
Power Saving Mode | Yes | ||||||||||||
Protection Level | IP54 | ||||||||||||
Drop Test Height | 2 m (6.56 ft) | ||||||||||||
Safety | IEC 61010-1 | ||||||||||||
EMC | EN 301489-1, EN 301489-17, EN IEC 61000-6-2, EN IEC 61000-6-3,EN 61326-1 |
||||||||||||
Vibration | 2 g, IEC 60068-2-6 | ||||||||||||
Warranty | 3 years for the full product, 10 years for the detector, and 2 years for the battery. |
||||||||||||
Shock | 25 g, IEC 60068-2-27 | ||||||||||||
Working Temperature Range | -20°C to 50°C (-4°F to 122°F) | ||||||||||||
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) | ||||||||||||
Relative Humidity | < 95% non-condensing | ||||||||||||
Weight | Approx. 720g (1.59 lb) | ||||||||||||
Dimension | 244 × 100 × 104 mm (9.6 × 3.9 × 4.1 in) | ||||||||||||
Tripod Mounting | UNC ¼”-20 |
