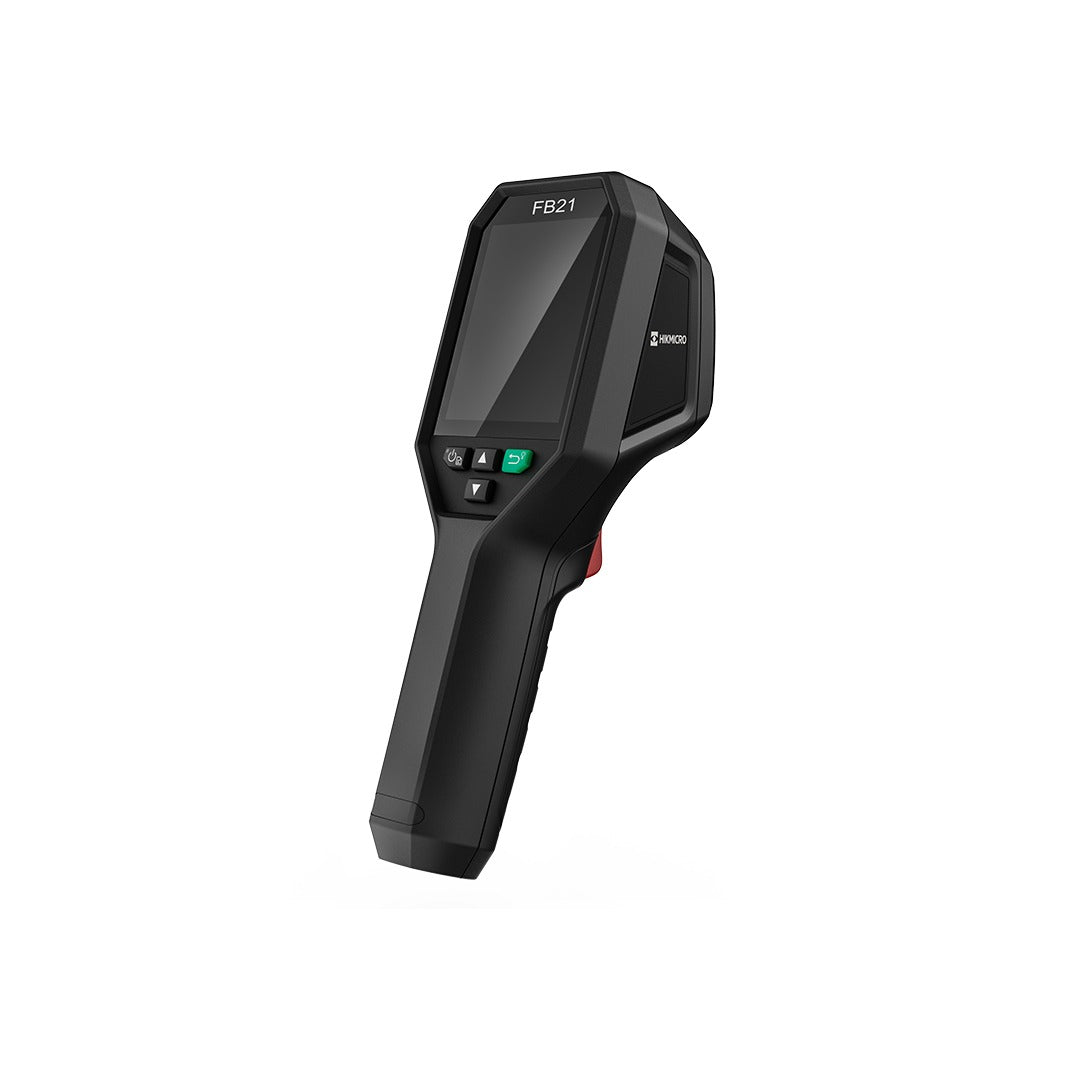

The HIKMICRO FB21 is a compact, reliable, firefighting thermal camera designed for firefighters to observe in total darkness and smoke, helping to save lives, protect property, and keep firefighters safe.
Features like dual cameras, LED flashlights, easy-to-navigate buttons, and a temperature range of up to 550°C (1022°F) help you work effortlessly in harsh environments. 8 color palettes for you to choose from, which satisfy most application scenarios.
Key Feature
- Thermal resolution: 256 x 192 (49 152 pixels)
- NETD : ＜40 mK (@ 25 °C,F#=1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
- Up to 10 minutes for ambient temperature -10°C to 90°C (14°F to 194°F) ; Up to 2 minutes for ambienttemperature -10°C to 115°C (14°F to 239°F)
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 3.2'' LCD screen display
- Up to 6 hours continuous running
- Support object details enhancement
| n Specification | |||
| Infrared Image | |||
| IR Resolution | 256 × 192 (49,152 pixels) | ||
| NETD | < 40 mK (@ 25 °C, F#=1.0) | ||
| Image Frequency | 25 Hz | ||
| Detector Pitch | 12 μm | ||
| Spectral Range | 7.5 to 14 μm | ||
| Focal Length | 3.6 mm | ||
| F-number | F1.0 | ||
| Field of View (FOV) | 37.2° × 50.0° | ||
| Spatial Resolution (IFOV) | 3.3 mrad | ||
| Min. Focus Distance | 0.3 m (0.98 ft) | ||
| Focus Mode | Focus Free | ||
| Image Display | |||
| Visual Camera | 1600 × 1200 (2 MP) | ||
| Display | 240 × 320 Resolution, 3.2" LCD Screen | ||
| Color Alarm | Above alarm | ||
| Color Palettes | Basic ,Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area, Building |
||
| Image Modes | Thermal/Visual/Fusion/PIP | ||
| Measurement and Analysis | |||
| Object Temperature Range | Range -20°C to 150°C (-4°F to 302°F) Range 100°C to 550°C (212°F to 1022°F) |
||
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
||
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots |
||
| Data Storage and Communication | |||
| Storage Media | Built-in 16 GB flash memory | ||
| Image Storage Capacity | Approx. 90,000 Images | ||
| General | |||

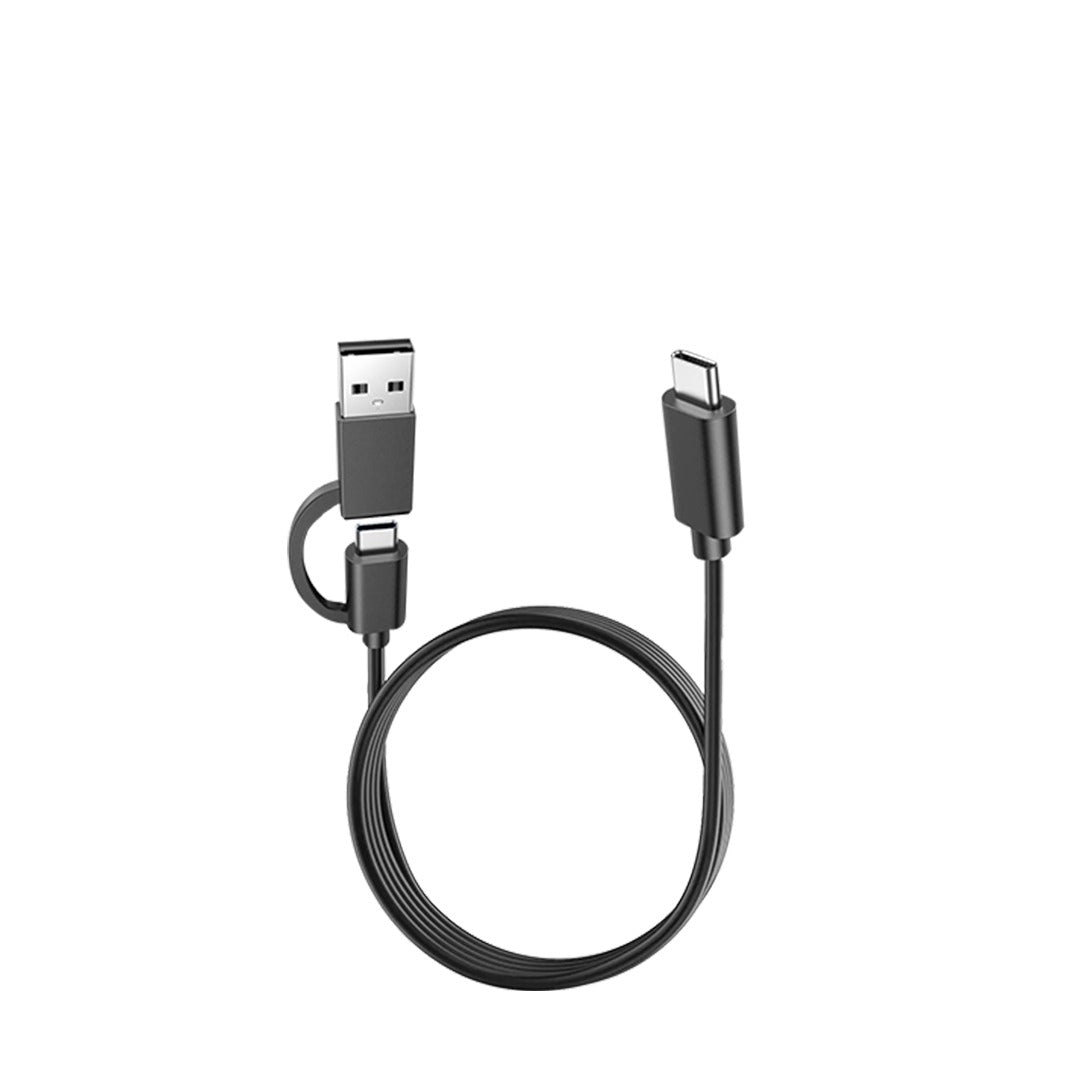

| USB Interface | USB Type-C | ||
| LED Light | Yes | ||
| Battery Type | Rechargeable Li-ion battery | ||
| Battery Charging Time | Approx. 3 hours fully charged | ||
| Battery Operating Time | Approx. 6 hours | ||
| Protection Level | IP65 | ||
| Drop Test Height | 2 m (6.56 ft) | ||
| Working Temperature Range | Up to 10 minutes for ambient temperature -10°C to 90°C (14°F to 194°F); up to 2 minutes for ambient temperature -10°C to 115°C (14°F to 239°F) |
||
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) | ||
| Relative Humidity | < 95% non-condensing | ||
| Weight | Approx. 380 g (0.84 lb) | ||
| Dimension | 221.7 × 73.5 × 123.8mm (8.73 × 2.89 × 4.87 in) | ||
| Tripod Mounting | UNC ¼”-20 | ||
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
