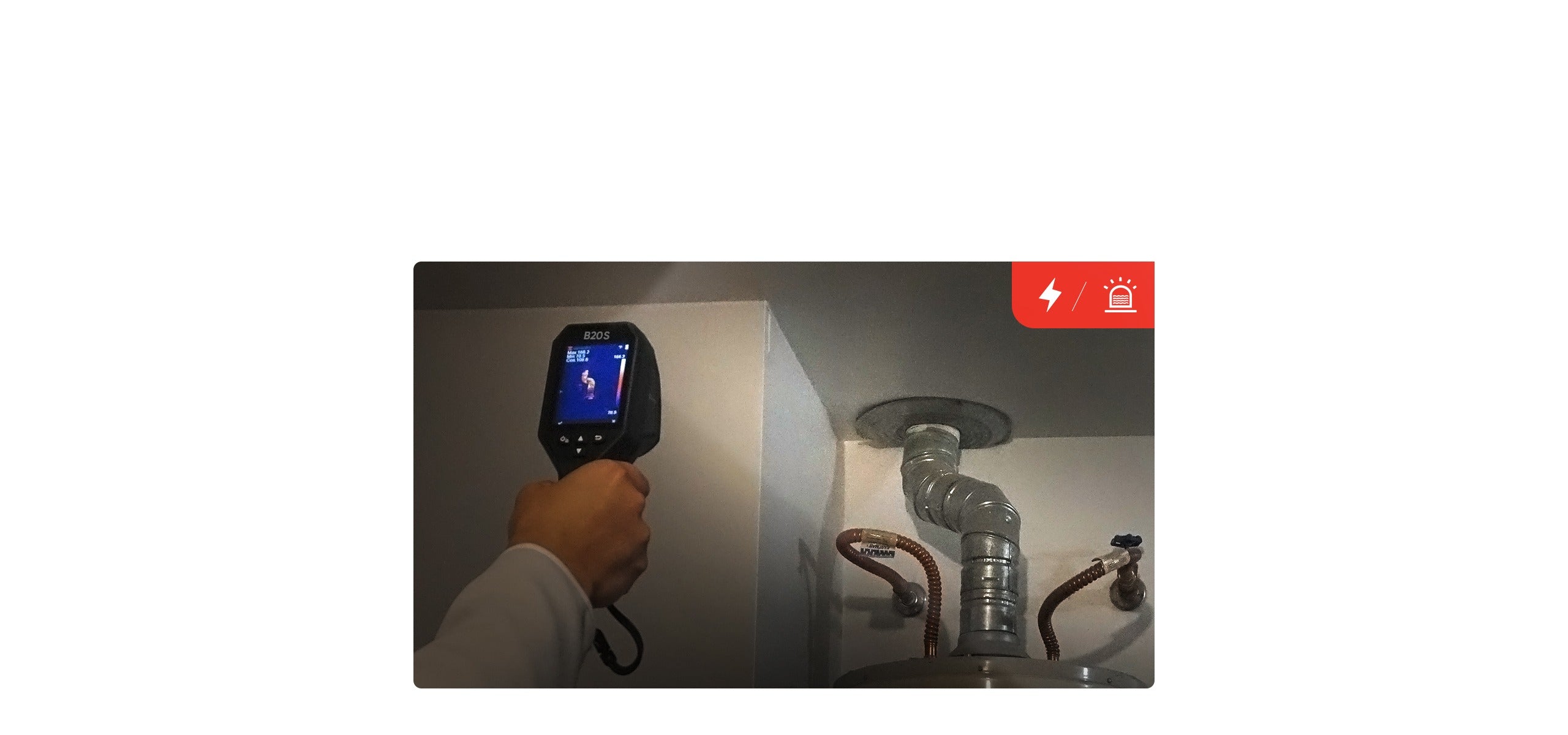

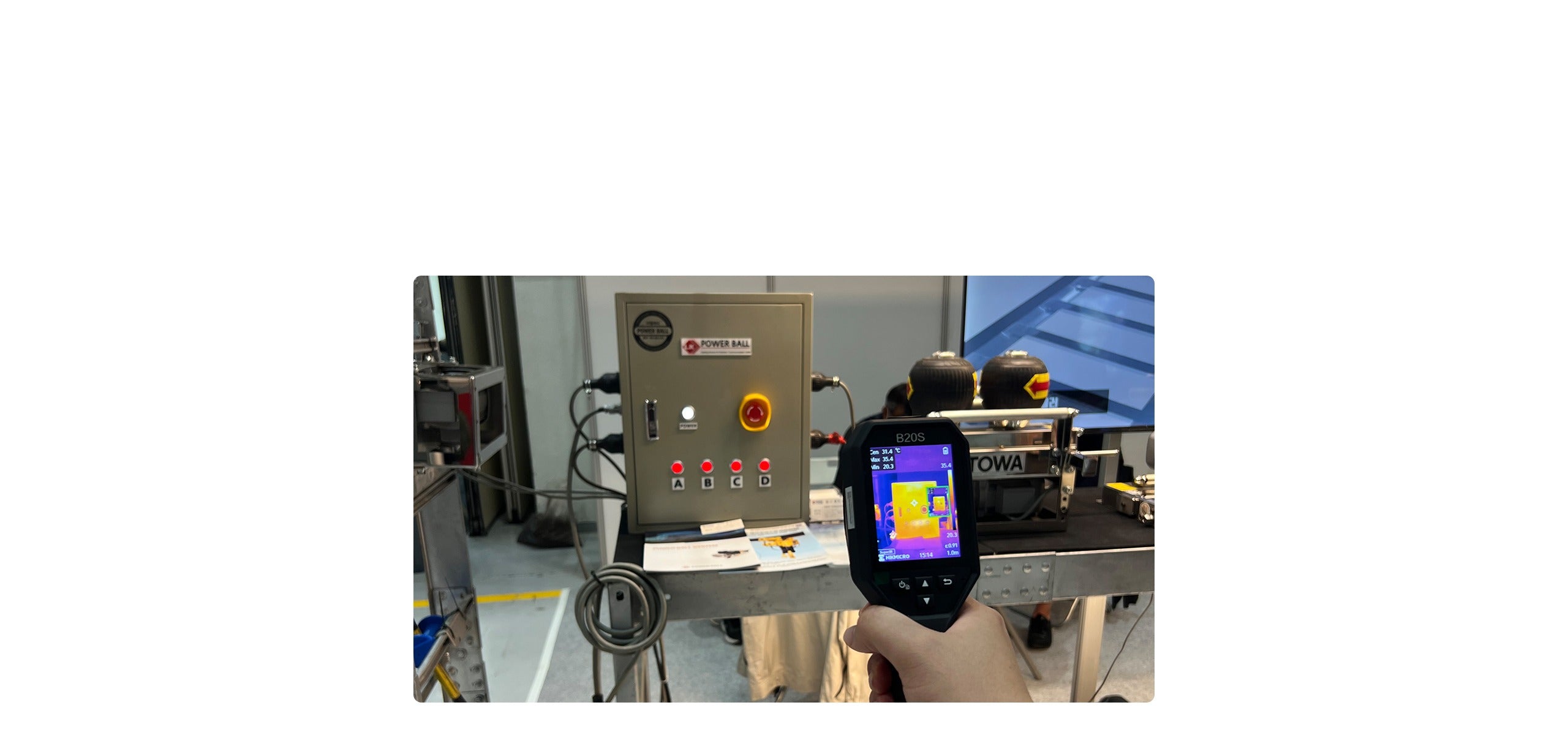

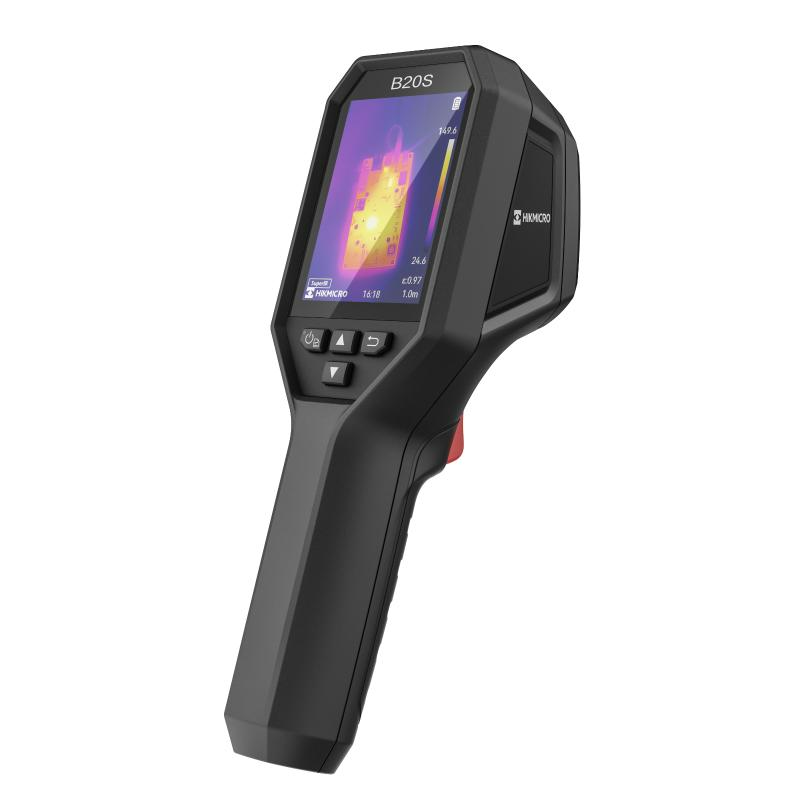

HIKMICRO B20S is designed for temperature measurement to find invisible faults. It’s equipped with a 256 x 192 resolution thermal detector and a 2MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F). Which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as building, HVAC, and auto industry, etc.
Key Features
- IR resolution: 256 x 192 (49 152 pixels), 2MP Visual Resolution

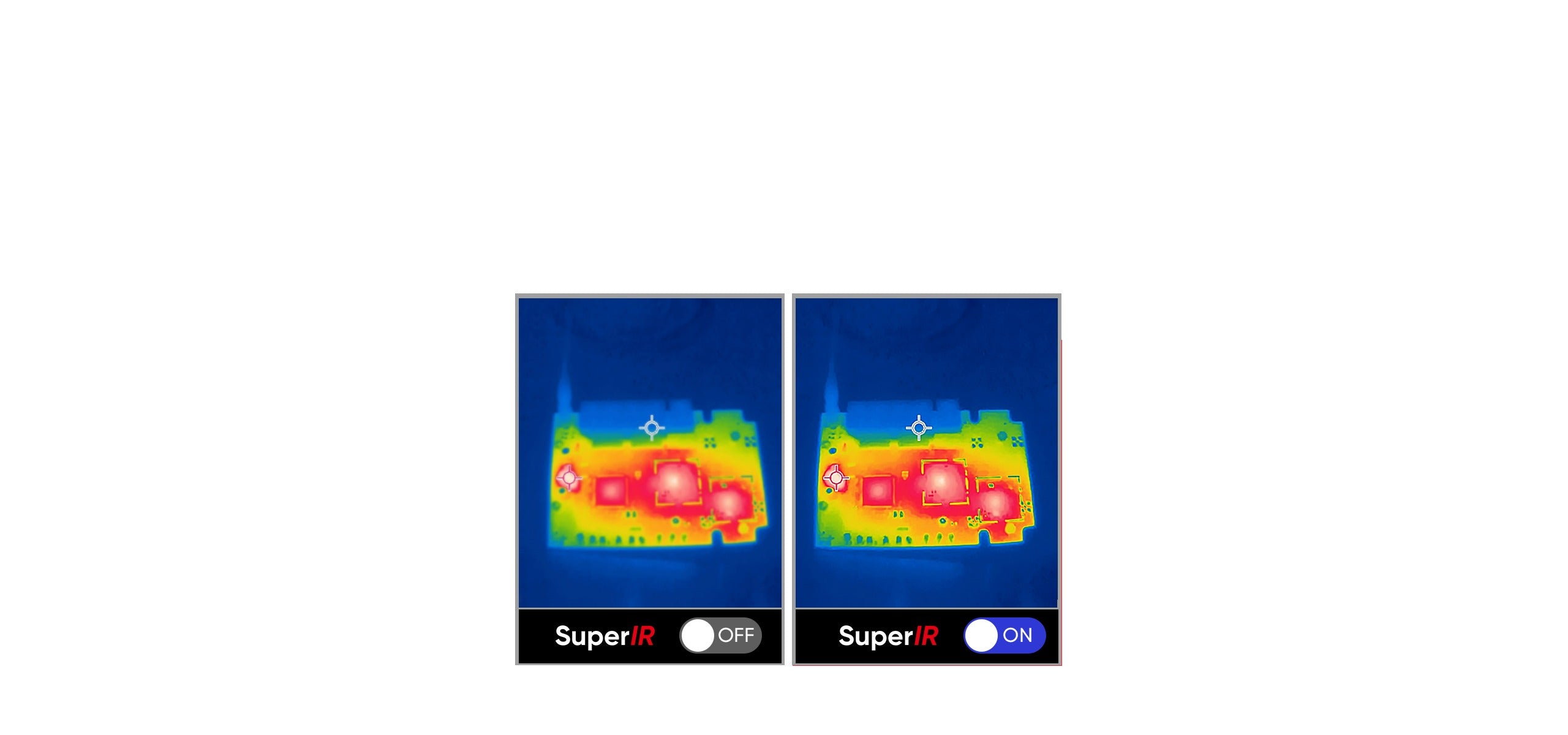

- Support SuperIR image enhancement technology
- NETD : ＜40 mK (@ 25 °C,F#=1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
- Accuracy: Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

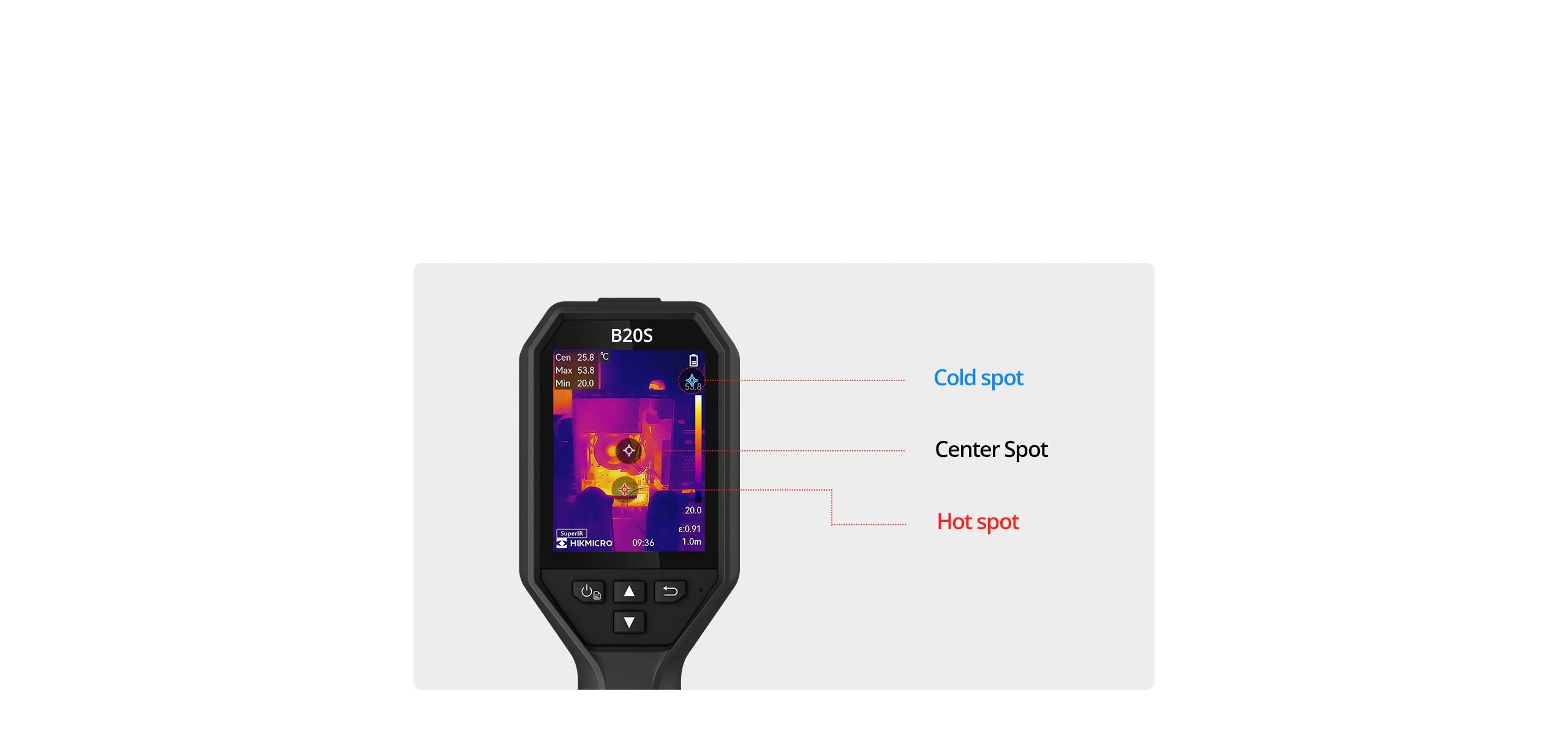

- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency

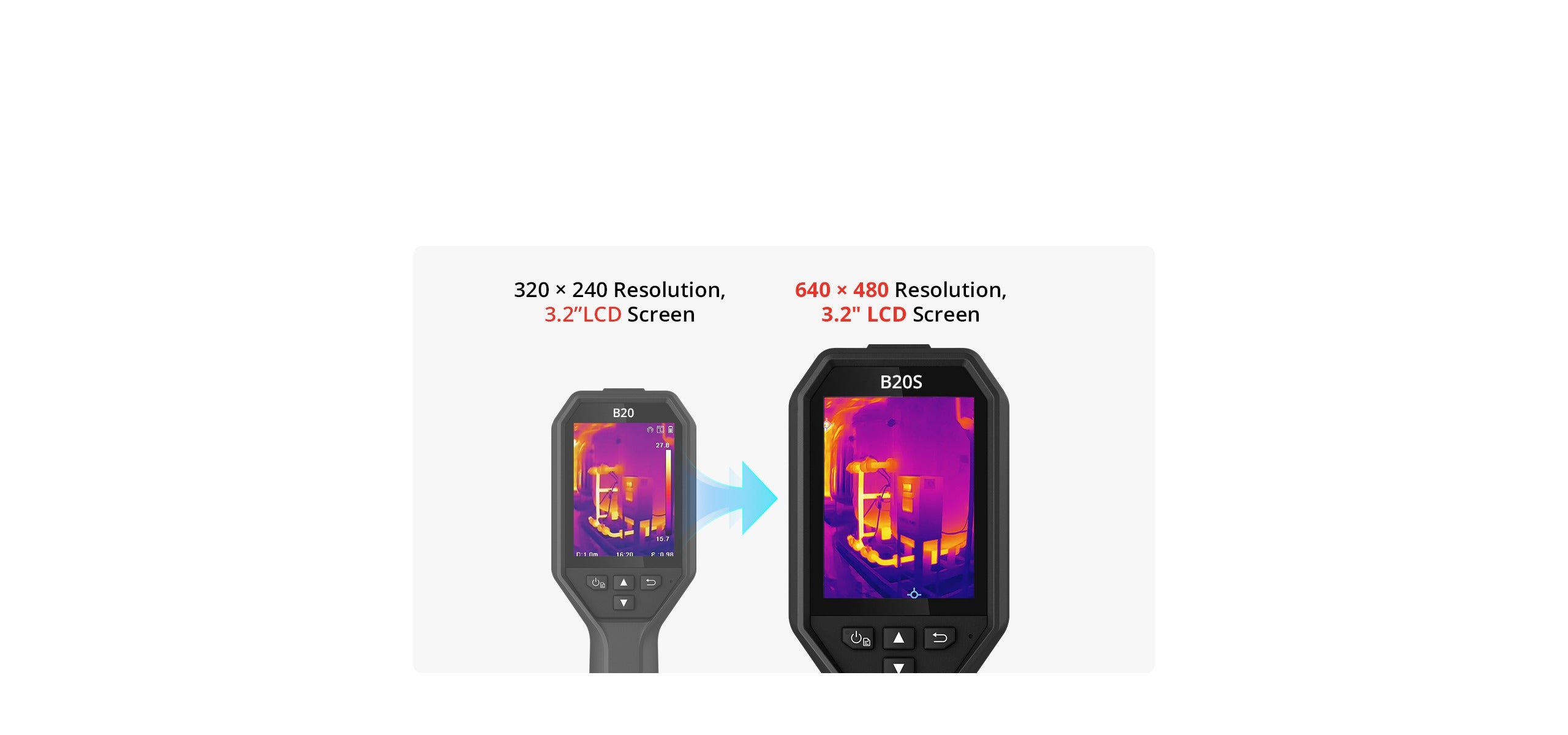

- 3.2" 480 × 640 Resolution LCD Screen
- Up to 6 hours continuous running
Specification
Infrared Image
IR Resolution 256 × 192 (49,152 pixels)
SuperIR Yes, on captured images and live view
NETD < 40 mK (@ 25 °C, F#=1.0)
Image Frequency 25 Hz
Detector Pitch 12 μm
Spectral Range 7.5 to 14 μm
Focal Length 3.6 mm
F-number F1.0
Field of View (FOV) 37.2° × 50.0°
Spatial Resolution (IFOV) 3.3 mrad
Min. Focus Distance 0.3 m (0.98 ft)
Focus Mode Focus Free
Image Display
Visual Camera 1600 × 1200 (2 MP)
Display 480 × 640 Resolution, 3.2" LCD Screen
Color Alarm Above alarm
Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion

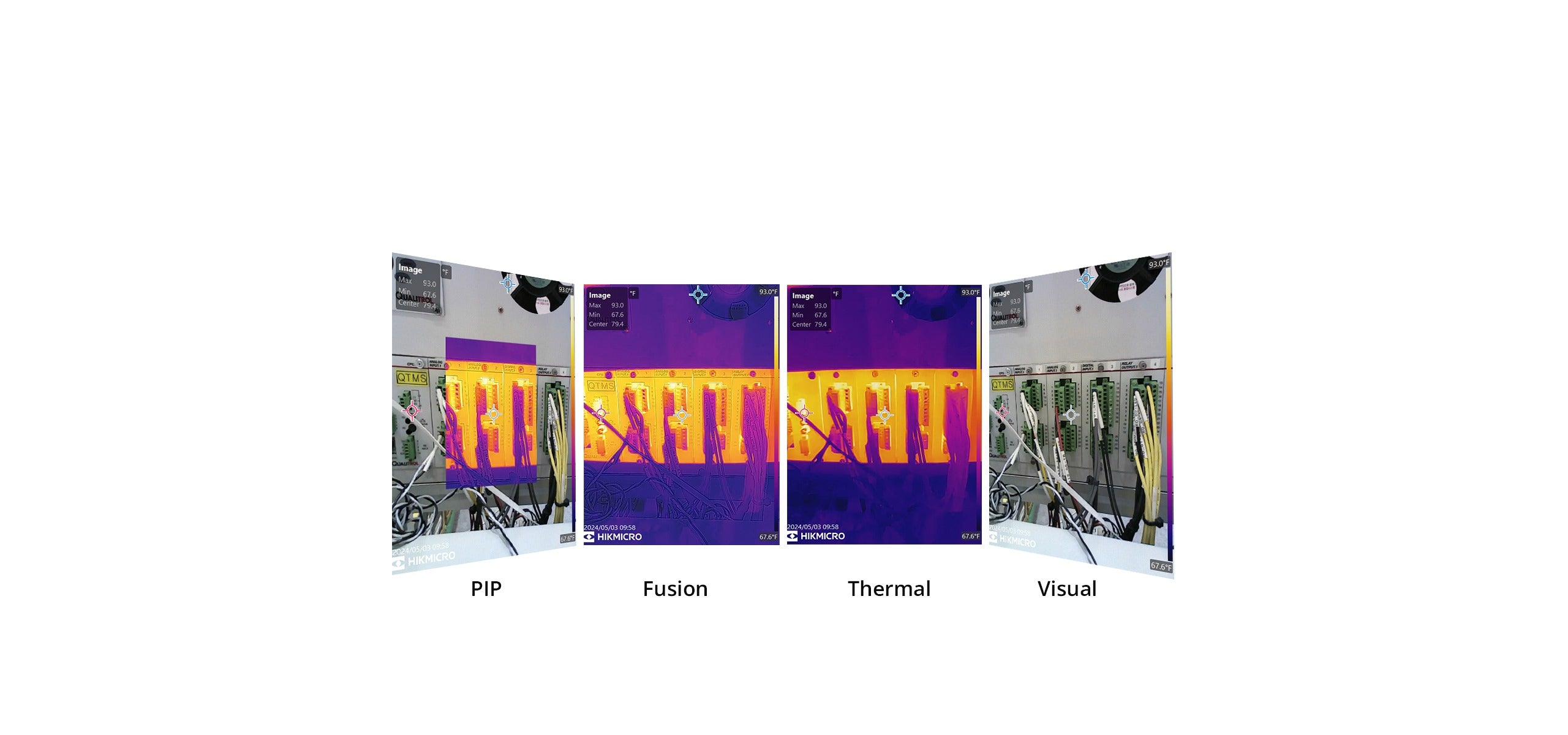

Image Modes Thermal/Visual/Fusion/PIP
Measurement and Analysis
Object Temperature Range Range -20°C to 150°C (-4°F to 302°F)
Range 100°C to 550°C (212°F to 1022°F)
Accuracy
Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15° C to 35°C (59°F to 95°F)
and object temperature above 0°C (32°F)
Measurement Tools Center Spot, Hot Spot, Cold Spot
User-definable: 3 spots
Level and Span Mode Auto/Manual
Data Storage and Communication
Storage Media Built-in 16G eMMC (user available storage space is less than the nominal
capacity)
Image Storage Capacity Approx. 35,000 Images
Image File Format Radiometric JPEG
General

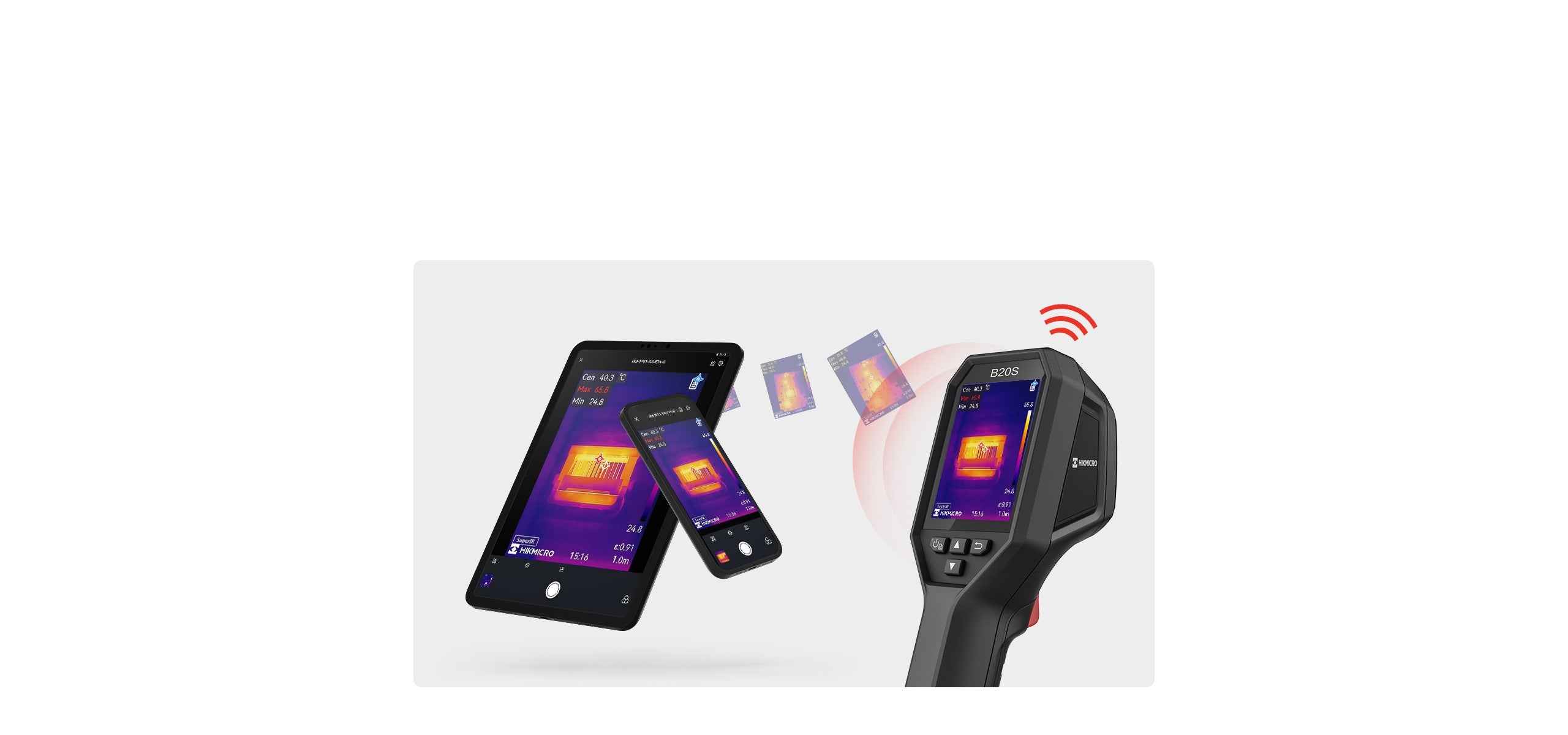

Wi-Fi 802.11 b/g/n (2.4GHz)
USB Interface USB Type-C
LED Light Yes
Power Supply USB-C (5V/2A)
Battery Type Rechargeable Li-ion battery
Battery Operating Time Approx. 6 hours
Battery Charging Time Approx. 3 hours fully charged
Protection Level IP54
Drop Test Height 2 m (6.56 ft)
Working Temperature Range -10°C to 50°C (14°F to 122°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Relative Humidity < 95% non-condensing
Weight Approx. 380 g (0.84 lb)
Dimension 221.7 × 73.5 × 123.8mm (8.73 × 2.89 × 4.87 in)
Tripod Mounting UNC ¼”-20
