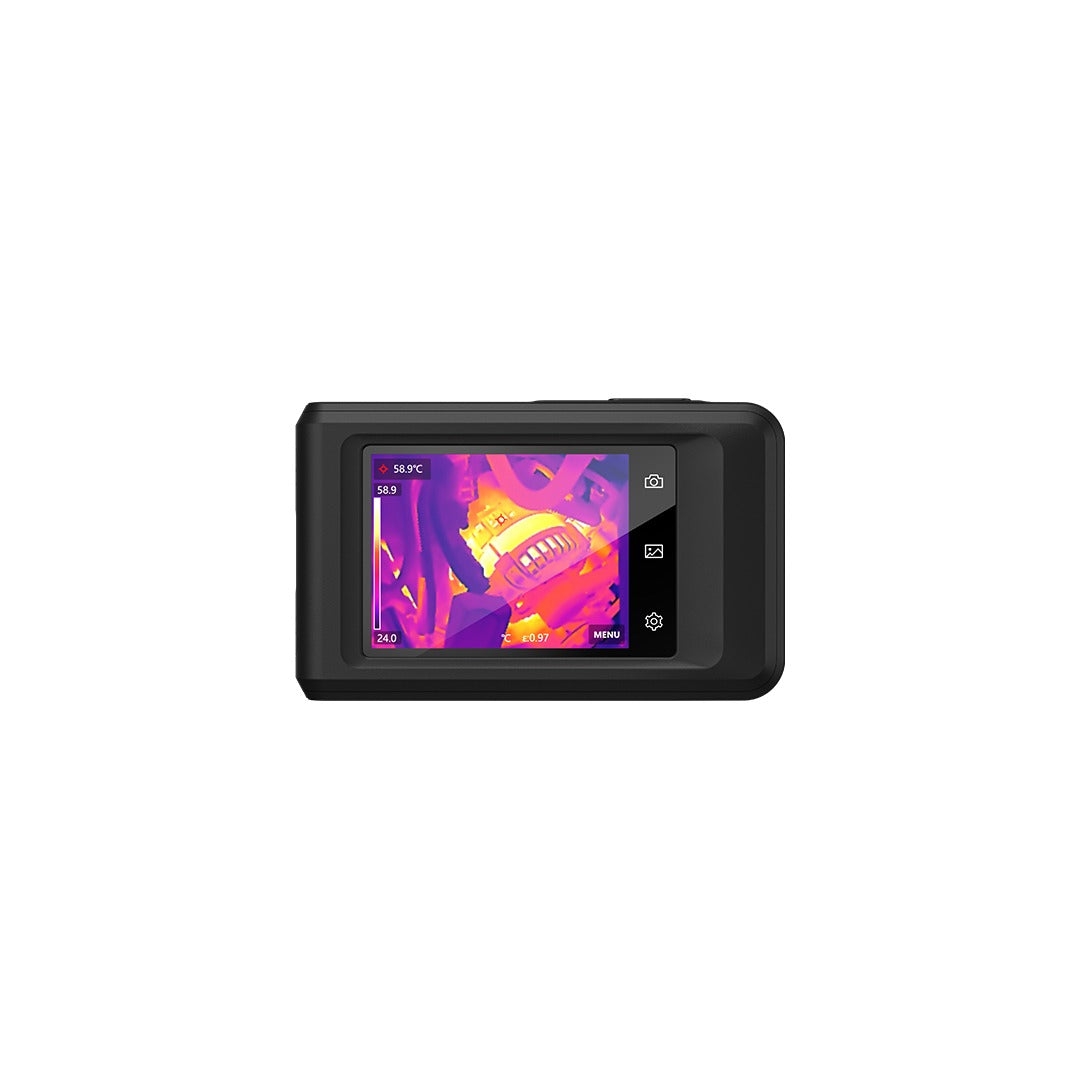

HIKMICRO Pocket Series is equipped with a high-resolution HIKMICRO VOx detector, an 8 MP optical camera, and a 3.5” LCD touch screen. It helps you quickly and efficiently locate the hidden problems and accurately measure abnormal temperature. The wide temperature range of -20°C to 400°C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspections, and the Wi-Fi function allows the Pocket to share images in real time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it.
Key Features
- IR resolution: 256 × 192 (49, 152 pixels), NETD: ＜40 mK (@ 25°C, F# = 1.0)
- Support SuperIR Image enhancement technology on captured images and live-view
- Accurately measure temperature from -20°C to 400°C ( -4°F to 752°F)
- Accuracy: Max. (± 2°C/3.6°F, ± 2%)
- 25 Hz image frequency
- Thermal, Fusion, PIP, Visual, and Blending modes
- Manual, automatic, and 1-Tap level and span
- High temperature alarm
- Built-in 16 GB memory
- LED work light
- 8MP visual camera
- Up to 4 hours continuous running
Specification Infrared Image |
||||
| IR Resolution | 256 × 192 (49, 152 pixels) | |||
| SuperIR | Yes, on captured images and live view | |||
| NETD | < 40 mK (@ 25 °C, F#=1.0) | |||
| Image Frequency | 25 Hz | |||
| Detector Pitch | 12 μm | |||
| Spectral Range | 7.5 to 14 μm | |||
| Focal Length | 3.5 mm | |||
| F-number | F1.1 | |||
| Field of View (FOV) | 50° × 37.2° | |||
| Spatial Resolution (IFOV) | 3.43 mrad | |||
| Min. Focus Distance | 0.3 m (0.98 ft) | |||
| Focus Mode | Focus Free | |||
| Image Display | ||||
| Visual Camera | 3264 × 2448 (8 MP) | |||
| Display | 640 × 480 Resolution, 3.5" LCD Touch Screen with auto-rotation | |||
| Screen Brightness | Manual | |||
| Digital Zoom | 1.0x to 4.0x continuous | |||
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | |||
| Image Modes | Thermal/Visual/Fusion/PIP/Blending | |||
| Measurement and Analysis | ||||
| Object Temperature Range | Range -20°C to 150°C (-4°F to 302°F) Range 100°C to 400°C (212°F to 752°F) |
|||
| Accuracy | Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F) |
|||
| Measurement Tools | Center Spot, Hot Spot, Cold Spot | |||
| Level and Span Mode | Auto/Manual/1-Tap Touch-screen | |||
| Data Storage and Communication | ||||
| Storage Media | Built-in 16 GB flash memory (user available storage space is less than the nominal capacity) |
|||
| Image Storage Capacity | Approx. 60,000 Images | |||
| Image File Format | Radiometric JPEG | |||
| Annotations | Text note: max. 255 characters | |||
| Video Storage Capacity | Approx. 54 hours | |||
| Video File Format | MP4 video (25 Hz) and Radiometric video (5 Hz) | |||
| Radiometric Infrared-Video Streaming (Compressed) |
Over UVC | |||
| General | ||||
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) | |||
| Bluetooth | Bluetooth 4.2, supports wireless headsets | |||
| USB Interface | USB Type-C | |||
| LED Light | Yes | |||
| Power Supply | USB-C (5V/2A) | |||
| Power Saving Mode | Auto Power-off and manual sleep | |||
| Battery Type | Rechargeable Li-ion battery | |||
| Battery Operating Time | Approx. 4 hours | |||
| Battery Charging Time | Approx. 2.5 hours fully charged | |||
| Protection Level | IP54 | |||
| Drop Test Height | 2 m (6.56 ft) | |||
| Working Temperature Range | -10°C to 50°C (-4°F to 122°F) | |||
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) | |||
| Relative Humidity | < 95% non-condensing | |||
| Weight | Approx. 218 g (0.481 lb) | |||
| Dimension | 138.5 × 85.2 × 23.6 mm (5.45 × 3.35 × 0.93 in) | |||
| Tripod Mounting | UNC ¼”-20 | |||
