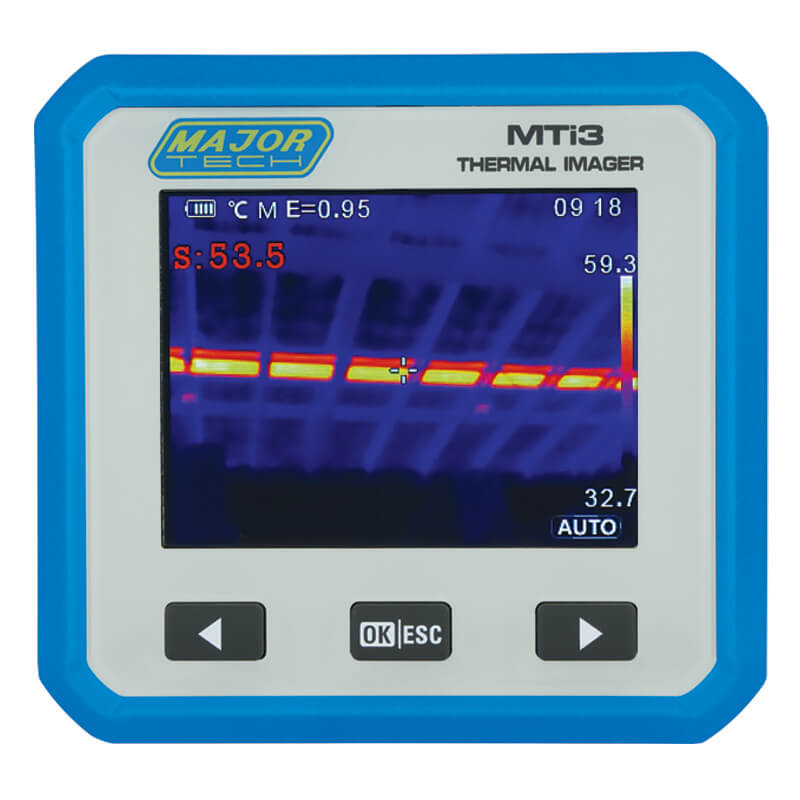

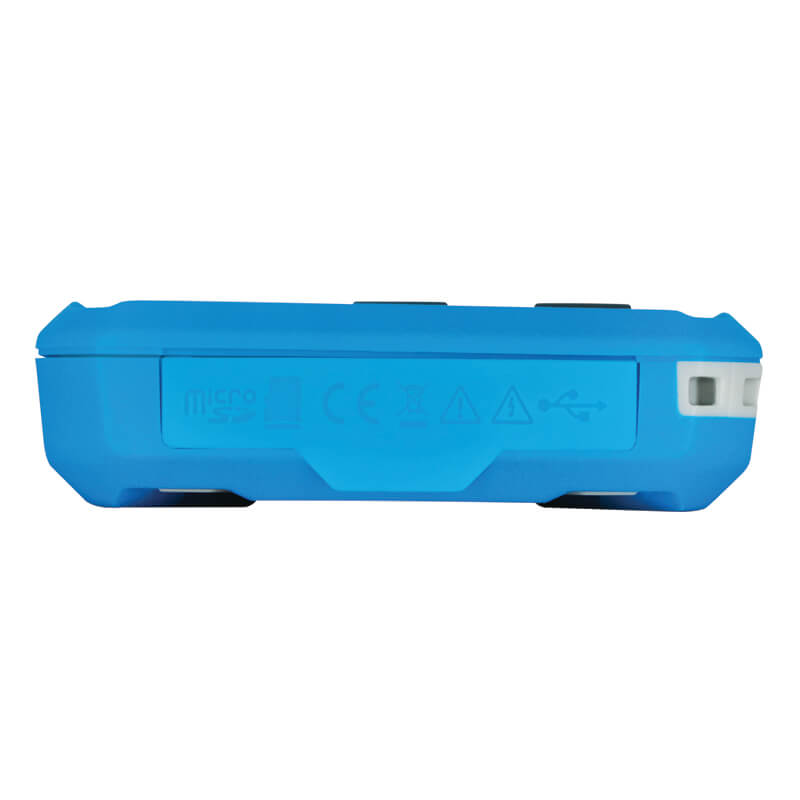

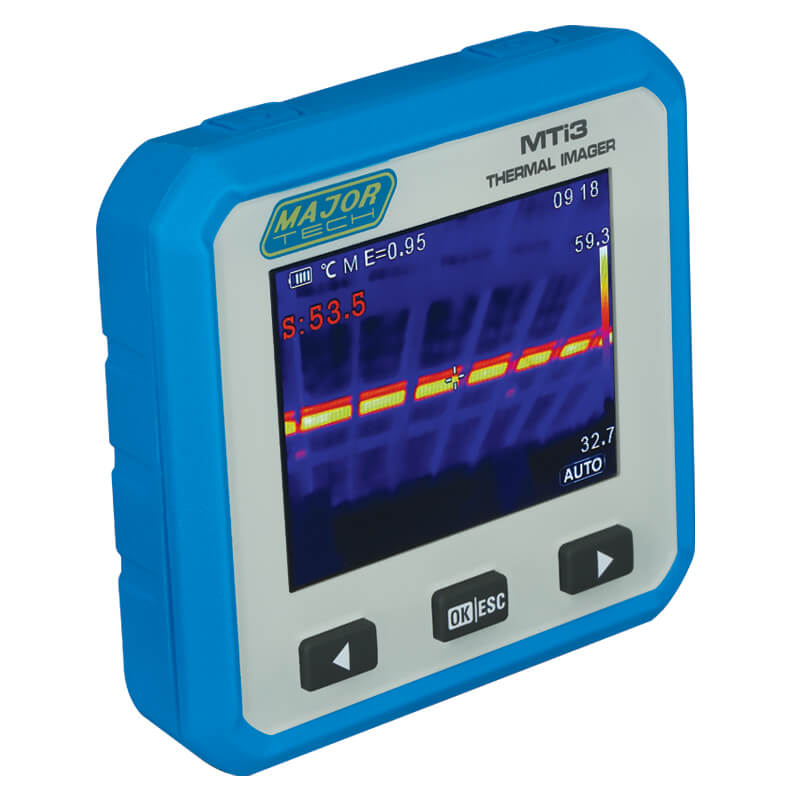

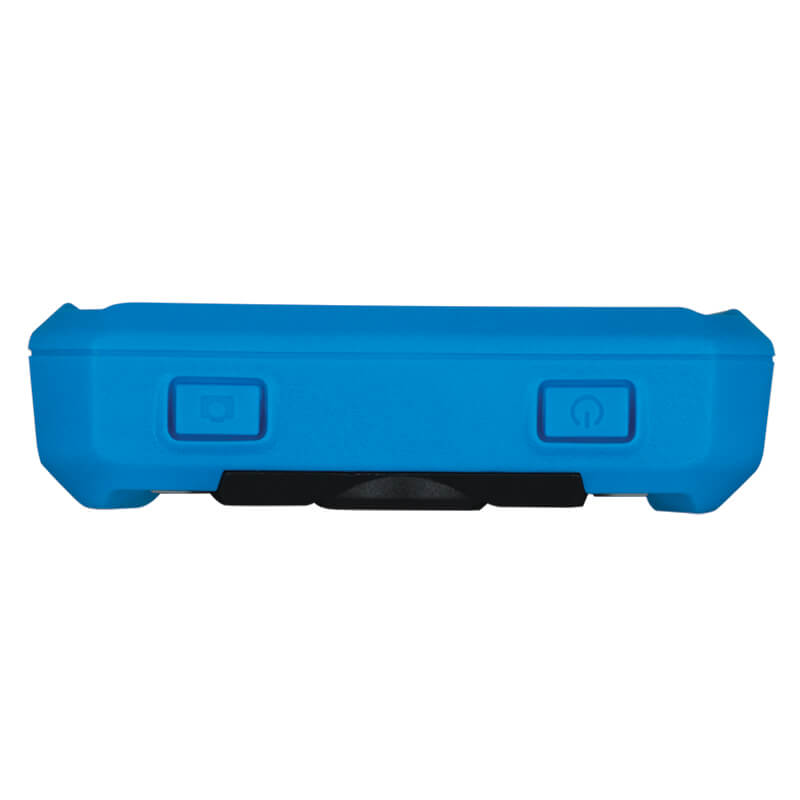

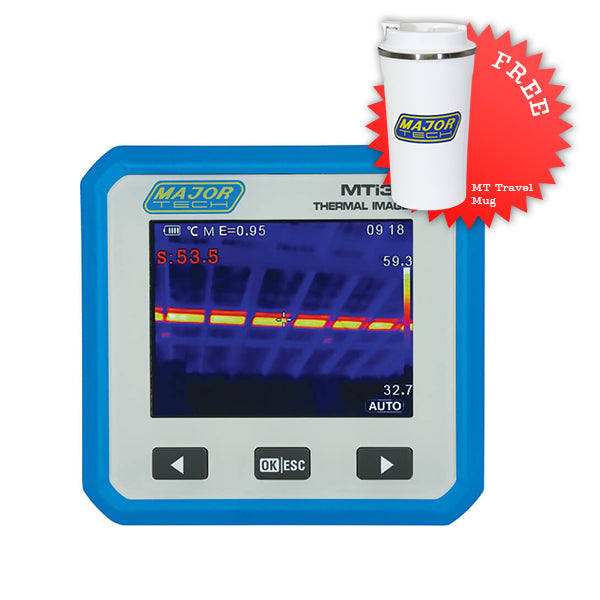

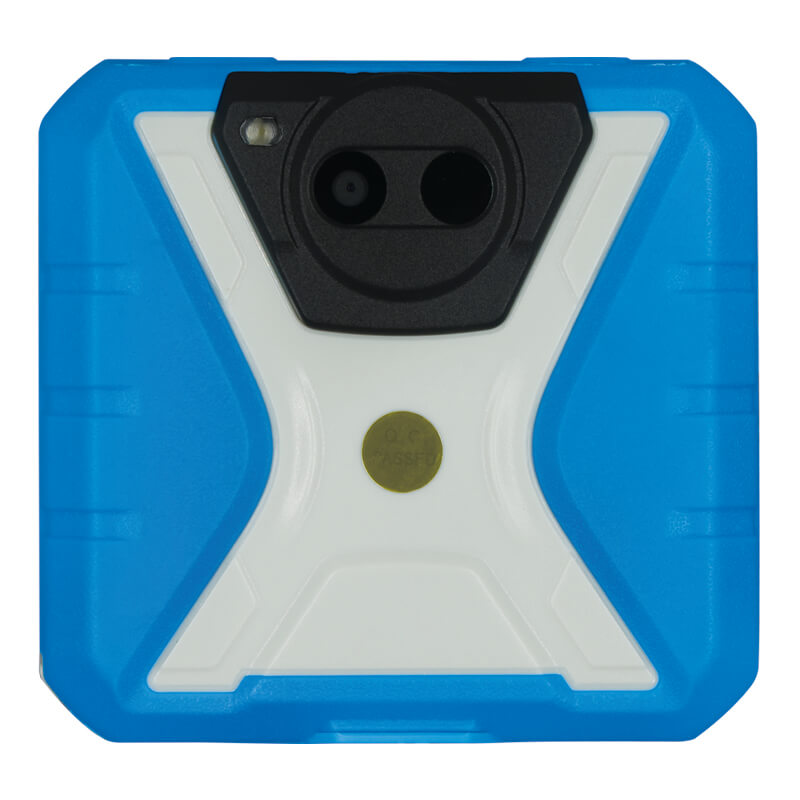

Introducing the MTi3 Thermal Imager with Wifi, your ultimate solution for predictive maintenance, equipment troubleshooting and verification tasks. Equipped with advanced features such as high thermal sensitivity, versatile imaging modes and a compact ergonomic design, this handheld imaging camera delivers unparalleled performance and accuracy. Whether you’re conducting electrical inspections, HVAC diagnostics or building assessments, the MTi3 provides crystal clear thermal images displayed on its 2.8-inch LCD. With a robust design and intuitive interface, it’s perfect for professionals across industries. Capture, analyse and share thermal data effortlessly with the included Thermal-X app software. Ensure safety, prevent downtime and optimize operations with the MTi3 Thermal Imager.
- Free Thermal-X App available for download on Google Play and iOS Store
- High Thermal Sensitivity/NETD of < 0.05°C at +30°C (+86°F)
- Feild of View (FOV) Minimum Focus Distance of 43°x 23°/ 0.5m
- Wide Temperature Ranges from -20°C to +150°C (-4°F to +302°F) or 0°C to +550°C (+32°F to +1022°F)
- Precise Measurement Accuracy of ±2°C (3.6°F) or ±2% of reading
- Versatile Imaging Modes including IR Mode, Visual Mode, Picture in picture, and Auto fusion(IR and Visual)
- Storage Media options include 8GB Micro SD card and 3.4GB internal EMMC MPEG-4 encoded Video Storage, allowing up to 60 minutes of 640×480 video at 30fps
- Video/Image Storage modes include IR, Visual or simultaneous storage of both IR and Visual
- Drop tested up to 2m, Bump tested up to 25G and Vibration tested up to 2G
- Up to 4 hours of uninterrupted operation with the rechargeable Li-Ion battery
Specifications:
| Function | Range |
| Imaging and Optical Data | |
| Field of View (FOV) / Minimum Focus Distance | 43° x 23° / 0.5m |
| Thermal Sensitivity / NETD | <0.05°C @ 30°C (86°F) / 50mK |
| Image Frequency | 25Hz |
| Focus Mode | Focus Free |
| Focal Plane Array (FPA)/ Spectral Range | Uncooled microbolometer / 8-14μm |
| IR Resolution | 160×120 Pixels |
| Image Presentation | |
| Display | 2.8″ LCD, 320×240 pixels |
| Image Modes | IR Image, Visual Image, Picture in Picture, Auto Fusion |
| Colour Palettes | IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather |
| Measurement | |
| Object Temperature Range | -20°C to 150°C (-4°F to 302°F) 0°C to 550°C (32°F to 1022°F) |
| Accuracy | ±2°C (3.6°F) or ±2% of reading (Environment temperature 10-35°C Object temperature >0°C) |
| Measurement Analyses | |
| Spot | Centre Spot, three manual spots |
| Automatic Hot/Cold Detection | Auto Hot or Cold Markers |
| Area | Three areas analyse |
| Measurement Corrections | Emissivity, Reflected Temperature, Ambient Temperature, Atmospheric Humidity, Infrared Compensation, Distance Compensation |
| Storage of Videos | |
| Storage Media | 8GB Micro SD Card and 3.4GB Internal EMMC |
| Video Storage Format | Standard MPEG-4 Encode, 640×480 at 30fps, on memory card >60 minutes |
| Video Storage Mode | IR/Visual Images; simultaneous storage of IR and visual images |
| Storage of Images | |
| Image Storage Format | Standard JPEG or HIR files including measurement data on memory card, >6000 pictures |
| Image Storage Mode | IR/Visual Images; simultaneous storage of IR and visual images |
| Image Analysis | Internal Image Analysis tools, complete function |
| Set-Up | |
| Set-Up Commands | Local adaptation of units, language, date & time and info of camera |
| Languages | Multinational |
| Digital Camera | |
| Built-in Digital Camera | 2 Megapixels |
| Built-in Digital Lens Data | FOV 59° |
| Data Communication Interfaces | |
| Interfaces | USB-C |
| USB | Data transfer between Camera & PC |
| WiFi | 802.11, transfer images and realtime video stream |
| Power System | |
| Battery | Li-ion, |
| Operating Time | 4 Hours |
| Input Voltage | DC 5V |
| Charging System | In Camera (AC Adaptor) |
| Power Management | Automatic Shutdown |
| Environmental Data | |
| Operating Temperature | -15°C to 50°C (5°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity (Operating & Storage) | 10% to 90% |
| Drop Test | 2m |
| Bump | 25g (IEC60068-2-29) |
| Vibration | 2g (IEC60068-2-6) |
| Physical Data | |
| Weight | 180g (Including Battery) |
| Dimensions (LxWxH) | 90 x 85 x 25mm |
