Loc-150Tx Transmitter includes:
- AC Leads
- DC Leads
- Direct Connection Leads
Key Features
- Powered by AC/DC external power source
- Over voltage, power and temperature alarms
- High-impact ABS plastic housing
- Identify the location of coating defects and faulty insulation joints
- Can also operate as a long-line pipeline locator
The Loc-150Tx, 150-Watt DM Transmitter is used primarily with the Defect Mapper (DM) Receiver, however it is also useful for those needing a low frequency, high output transmitter.
Typically, the Loc-150Tx, transmitter (DM transmitter) is used to apply a signal current to the anode bed. The pipeline returns the signal via coating faults back to the transmitter. The Loc-150Tx transmitter is designed to be powered from CP (Cathodic Protection) stations, AC or external batteries, eliminating the need for internal batteries. This transmitter has a direct connection mode to apply the locate frequency onto the conductor. There is no clamp or induction mode.

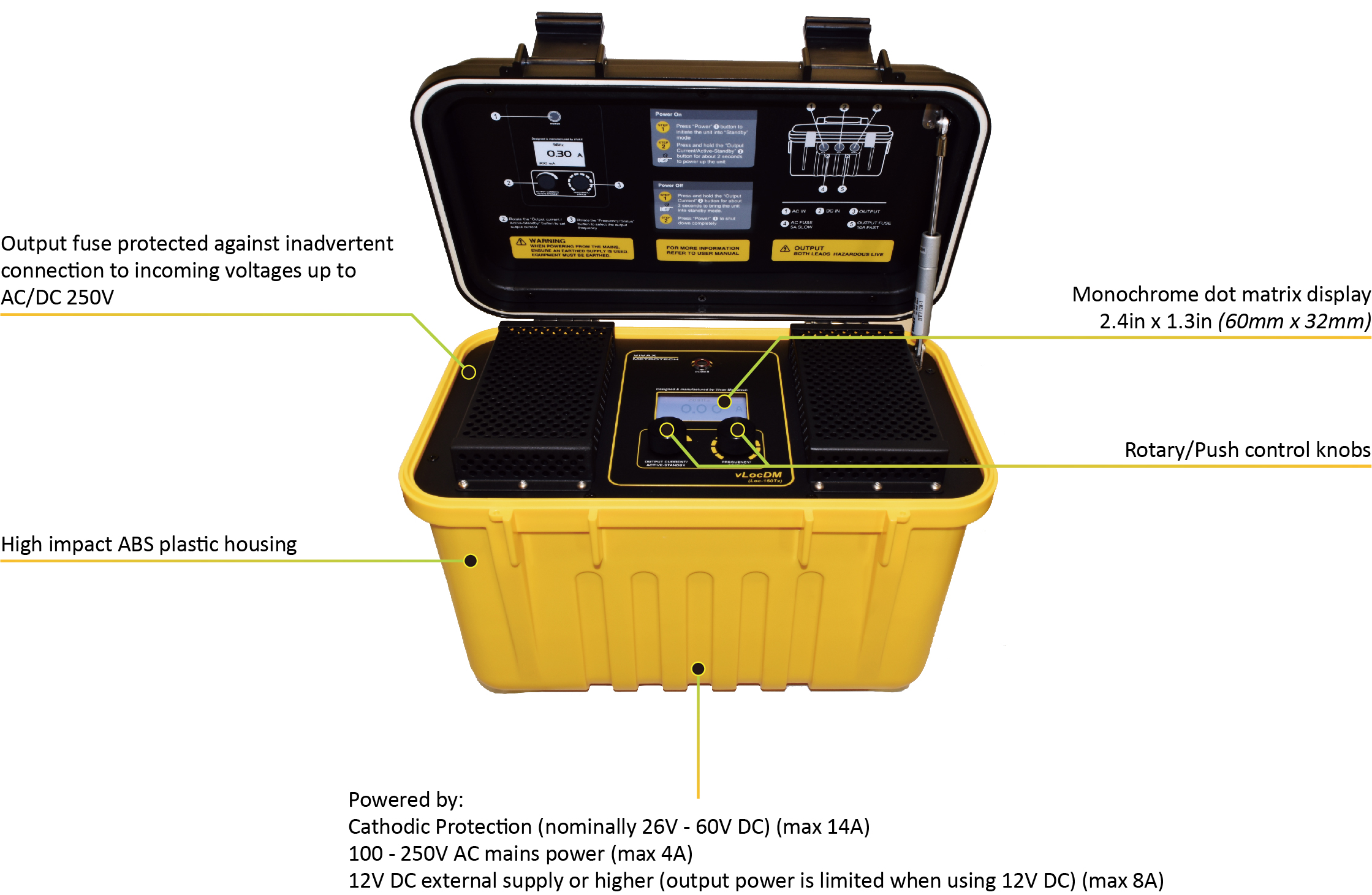

The Loc-150Tx transmitter has selectable direct connection frequencies from 98Hz to 512Hz (640 Hz in Europe). The two inch by one-inch dot matrix display with LED backlight shows output current, volts, frequency, and over voltage/over temperature/over power warnings.
Two rotary/push control knobs provide access to frequency selection, output level, menu information and active/standby modes. This transmitter is supplied with a direct connection lead, DC input lead and AC mains lead.
brochure
technical-specification
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
Loc-150Tx Transmitter includes:
- AC Leads
- DC Leads
- Direct Connection Leads
Key Features
- Powered by AC/DC external power source
- Over voltage, power and temperature alarms
- High-impact ABS plastic housing
- Identify the location of coating defects and faulty insulation joints
- Can also operate as a long-line pipeline locator
The Loc-150Tx, 150-Watt DM Transmitter is used primarily with the Defect Mapper (DM) Receiver, however it is also useful for those needing a low frequency, high output transmitter.
Typically, the Loc-150Tx, transmitter (DM transmitter) is used to apply a signal current to the anode bed. The pipeline returns the signal via coating faults back to the transmitter. The Loc-150Tx transmitter is designed to be powered from CP (Cathodic Protection) stations, AC or external batteries, eliminating the need for internal batteries. This transmitter has a direct connection mode to apply the locate frequency onto the conductor. There is no clamp or induction mode.
The Loc-150Tx transmitter has selectable direct connection frequencies from 98Hz to 512Hz (640 Hz in Europe). The two inch by one-inch dot matrix display with LED backlight shows output current, volts, frequency, and over voltage/over temperature/over power warnings.
Two rotary/push control knobs provide access to frequency selection, output level, menu information and active/standby modes. This transmitter is supplied with a direct connection lead, DC input lead and AC mains lead.
