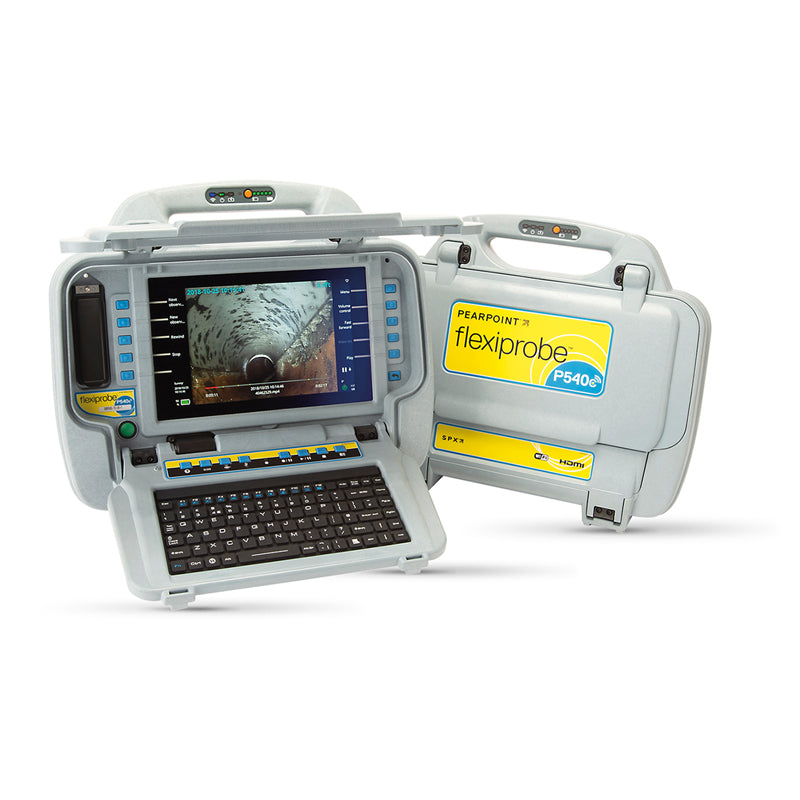

These Pearpoint inspection systems include the P540c Controller which has a high-definition 10.1" TFT display that enhances the user experience. have robust and durable cameras that offer advanced features to make your life easier. The rods offer flexibility with your workload whether you're inspecting household plumbing systems, completing routine commercial inspections, or identifying potential when performing preventative maintenance.

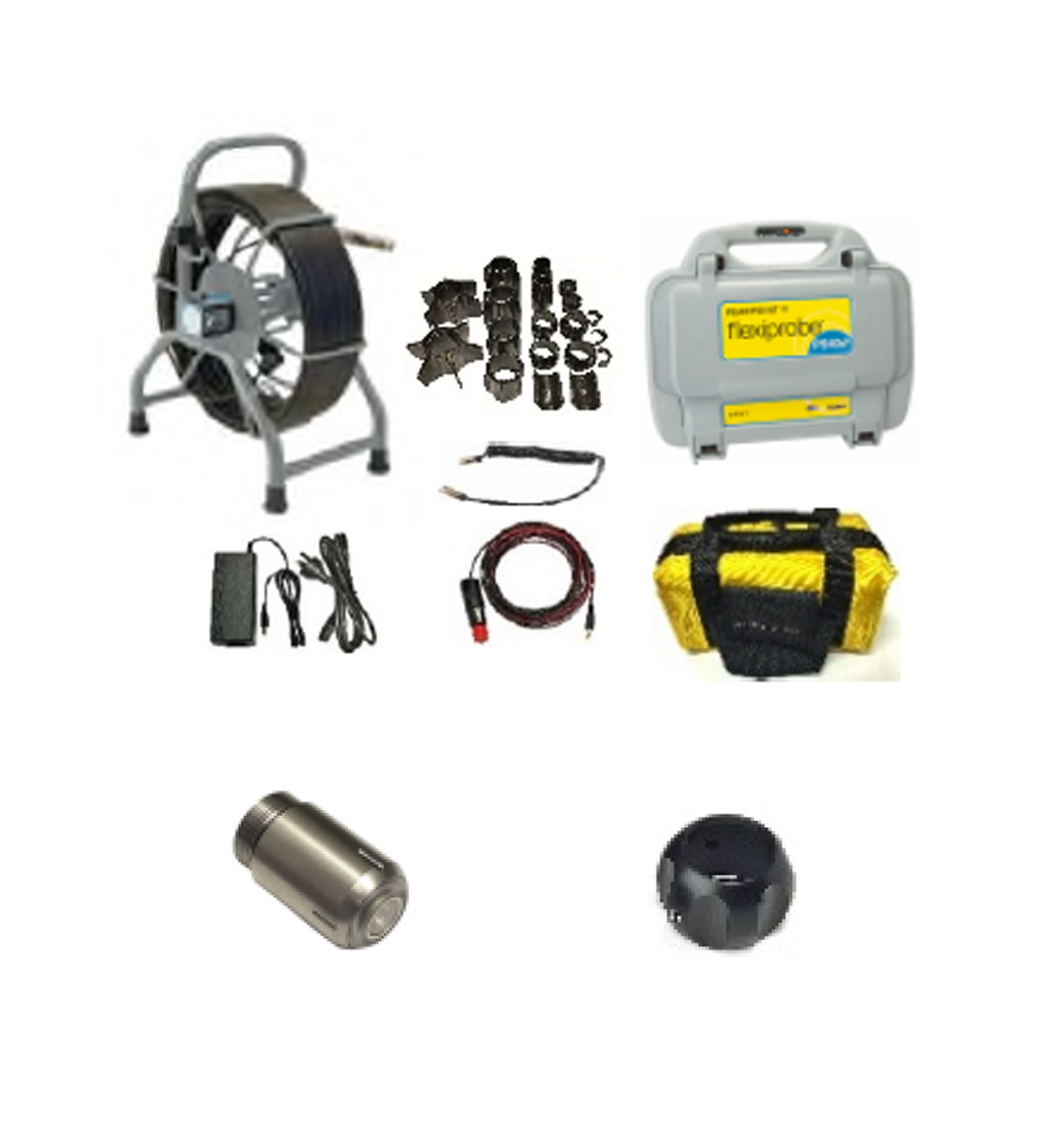

These Pearpoint P541 kits include a Flexiprobe P541 System with a P540c Controller, a camera skid ball, a vehicle charge lead, and a built-in Flexisonde along with the accessories mentioned in the What's Included? section. Two kits are available with either a 30m reel or a 60m reel.
Key Features
- User-Friendly Control
- Specialised Dual Reel System
- High-Resolution Cameras
- Robust Construction
- 30m or 60m Rod Options
- Multi-Standard Reporting
- Advanced Connectivity
What's Included?
- Flexiprobe P541 System with a P540c Controller
- Built-in Battery
- 128GB Internal Memory
- Blank USB Memory Stick
- Indoor Mains PSU/Charger with Mains Lead
- Vehicle Charge Lead
- Controller to Reel Link Cable
- Camera Skid Ball
- Skids Set
- Accessory Bag
- 30m or 60m reel rod
| Cameras | 1"/25mm camera | 1 ¼"/32mm self-levelling camera | 2"/50mm self-levelling camera |
|---|---|---|---|
| Camera Dimensions | 1" x 1.52"/25.4 x 38.7mm | 1.23" x 2.6"/31.24 x 66mm | 1.89" x 2.87"/48 x 72.8mm |
| Camera Weight | 0.1lbs /0.06kg | 0.4lbs/0.18kg | 0.8lbs/0.36kg |
| Camera Construction | Stainless steel/ polycarbonate | Stainless steel/sapphire glass /polycarbonate | Stainless steel/ polycarbonate |
| Power | 1.8W | 1.3W | 3.8W |
| Environmental | IP68 to 330' (100m)/11bar | IP68 to 230' (70m)/7bar | IP68 to 330' (100m)/11bar |
| Temperature | Storage: -4°F to 176°F/-20°C to +80°C Operating: 14°F to 122°F/-10°C to +50°C |
||
| Focus | Manually adjustable | Fixed | Manually adjustable |
| Focal range | 10mm to ∞ | Fixed | 10mm to ∞ |
| Lighting | Ultra bright white LEDs | ||
| LED luminance | ≥ 75lm | ≥ 150lm | ≥ 208lm |
| Active pixels (HxV) | 656 x 492 NTSC 768 x 576 PAL |
640 x 480 (NTSC) 640 x 576 (PAL) |
768 x 492 NTSC 765 x 582 PAL |
| Horizontal resolution | ≥ 460TVL | ≥ 420TVL | ≥ 460TVL |
| Feature (P540c Controller) | Specification |
|---|---|
| Power supply Mains Input | 100-240VAC, 50-60Hz, 1.7A |
| DC Output | 16V, 3.75A, 60W |
| Input power requirements | 10-30V, 60W |
| Battery capacity | Internal Li-Ion Battery (4S2P) 14.68V, 6.4Ah (93.95Wh) |
| Battery run-time | Up to 1 day's typical usage, 7.5hrs view only/5hrs continuous recording* |
| Battery level indication | 5 LEDs in the handle (user activated) and on-screen symbol |
| Charging Status | 2 LEDs |
| WiFi Status | 1 LED and on-screen symbol |
| Display | 10.1", 1280x800 transmissive HD color TFT |
| Storage | Integral 128Gb and support of USB flash storage |
| Recording formats | Video: H.264. Audio: MP3. File format: MP4 |
| Connectivity | USB 2.0 (x3), HDMI video out, Analog video in (PAL/NTSC), Headphones out, Microphone in, Rod/Camera connectivity and 802.11 b/g/n WiFi |
| Environmental Protection | P540c controller IP55 |
| Power supply /charger | IP54 rated for indoor use |
| Temperature Storage | -4°F to 176°F/-20°C to +80°C |
| Operating Temperature | 14°F to 122°F/-10°C to +50°C |
| Charging Temperature | 32°F to 104°F/0°C to +40°C |
| Fuse rating | 5A |
| Dimensions | 17.5 x 15.2 x 6.1"/445 x 385 x 155mm |
| Weight | 16lb/7.25kg |
| Construction | High-impact ABS and powder-coated, zinc-plated mild steel |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
These Pearpoint inspection systems include the P540c Controller which has a high-definition 10.1" TFT display that enhances the user experience. have robust and durable cameras that offer advanced features to make your life easier. The rods offer flexibility with your workload whether you're inspecting household plumbing systems, completing routine commercial inspections, or identifying potential when performing preventative maintenance.
These Pearpoint P541 kits include a Flexiprobe P541 System with a P540c Controller, a camera skid ball, a vehicle charge lead, and a built-in Flexisonde along with the accessories mentioned in the What's Included? section. Two kits are available with either a 30m reel or a 60m reel.
Key Features
- User-Friendly Control
- Specialised Dual Reel System
- High-Resolution Cameras
- Robust Construction
- 30m or 60m Rod Options
- Multi-Standard Reporting
- Advanced Connectivity
What's Included?
- Flexiprobe P541 System with a P540c Controller
- Built-in Battery
- 128GB Internal Memory
- Blank USB Memory Stick
- Indoor Mains PSU/Charger with Mains Lead
- Vehicle Charge Lead
- Controller to Reel Link Cable
- Camera Skid Ball
- Skids Set
- Accessory Bag
- 30m or 60m reel rod
| Cameras | 1"/25mm camera | 1 ¼"/32mm self-levelling camera | 2"/50mm self-levelling camera |
|---|---|---|---|
| Camera Dimensions | 1" x 1.52"/25.4 x 38.7mm | 1.23" x 2.6"/31.24 x 66mm | 1.89" x 2.87"/48 x 72.8mm |
| Camera Weight | 0.1lbs /0.06kg | 0.4lbs/0.18kg | 0.8lbs/0.36kg |
| Camera Construction | Stainless steel/ polycarbonate | Stainless steel/sapphire glass /polycarbonate | Stainless steel/ polycarbonate |
| Power | 1.8W | 1.3W | 3.8W |
| Environmental | IP68 to 330' (100m)/11bar | IP68 to 230' (70m)/7bar | IP68 to 330' (100m)/11bar |
| Temperature | Storage: -4°F to 176°F/-20°C to +80°C Operating: 14°F to 122°F/-10°C to +50°C |
||
| Focus | Manually adjustable | Fixed | Manually adjustable |
| Focal range | 10mm to ∞ | Fixed | 10mm to ∞ |
| Lighting | Ultra bright white LEDs | ||
| LED luminance | ≥ 75lm | ≥ 150lm | ≥ 208lm |
| Active pixels (HxV) | 656 x 492 NTSC 768 x 576 PAL |
640 x 480 (NTSC) 640 x 576 (PAL) |
768 x 492 NTSC 765 x 582 PAL |
| Horizontal resolution | ≥ 460TVL | ≥ 420TVL | ≥ 460TVL |
| Feature (P540c Controller) | Specification |
|---|---|
| Power supply Mains Input | 100-240VAC, 50-60Hz, 1.7A |
| DC Output | 16V, 3.75A, 60W |
| Input power requirements | 10-30V, 60W |
| Battery capacity | Internal Li-Ion Battery (4S2P) 14.68V, 6.4Ah (93.95Wh) |
| Battery run-time | Up to 1 day's typical usage, 7.5hrs view only/5hrs continuous recording* |
| Battery level indication | 5 LEDs in the handle (user activated) and on-screen symbol |
| Charging Status | 2 LEDs |
| WiFi Status | 1 LED and on-screen symbol |
| Display | 10.1", 1280x800 transmissive HD color TFT |
| Storage | Integral 128Gb and support of USB flash storage |
| Recording formats | Video: H.264. Audio: MP3. File format: MP4 |
| Connectivity | USB 2.0 (x3), HDMI video out, Analog video in (PAL/NTSC), Headphones out, Microphone in, Rod/Camera connectivity and 802.11 b/g/n WiFi |
| Environmental Protection | P540c controller IP55 |
| Power supply /charger | IP54 rated for indoor use |
| Temperature Storage | -4°F to 176°F/-20°C to +80°C |
| Operating Temperature | 14°F to 122°F/-10°C to +50°C |
| Charging Temperature | 32°F to 104°F/0°C to +40°C |
| Fuse rating | 5A |
| Dimensions | 17.5 x 15.2 x 6.1"/445 x 385 x 155mm |
| Weight | 16lb/7.25kg |
| Construction | High-impact ABS and powder-coated, zinc-plated mild steel |
