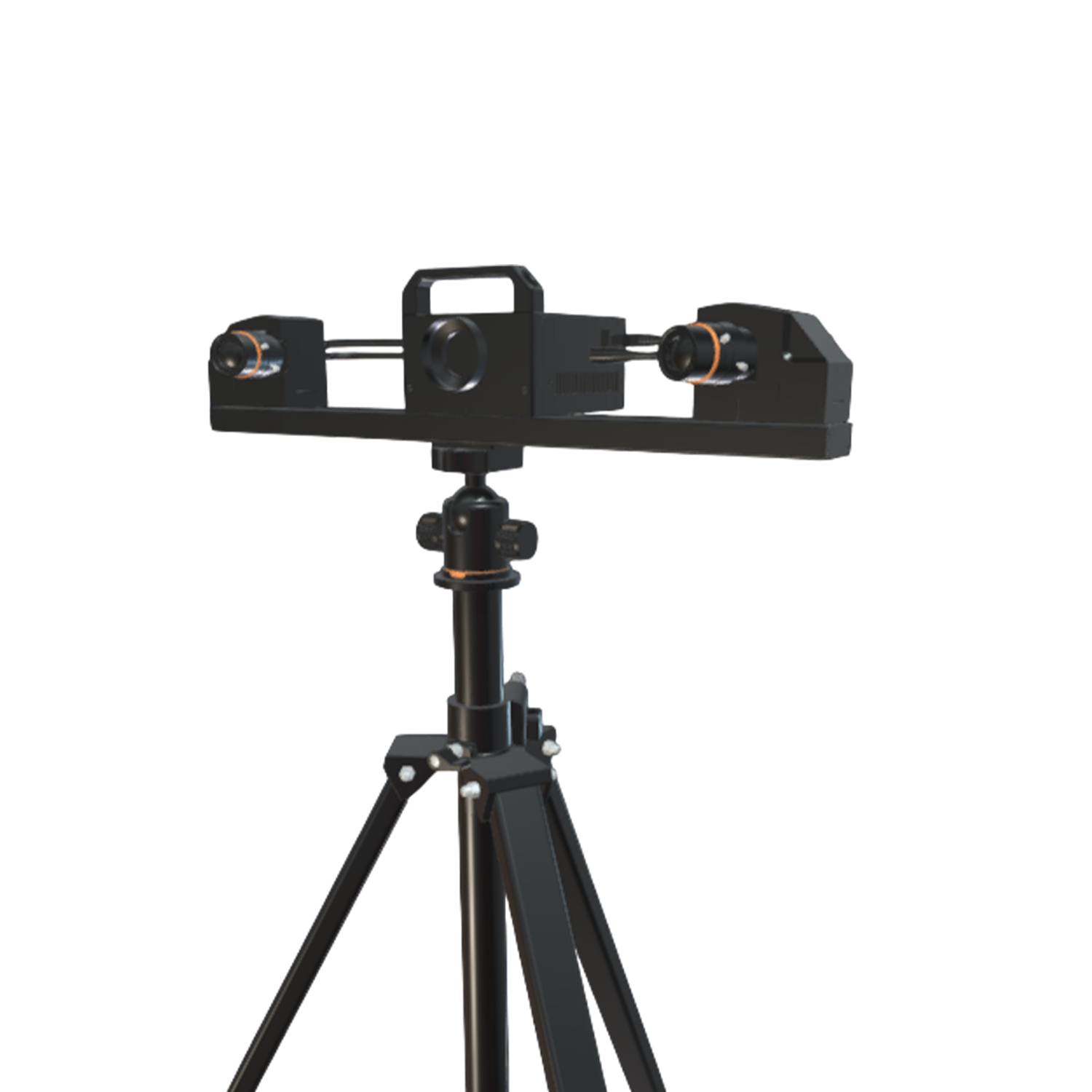

Shining 3D Transcan C

SKU: C4006
$7,968.00
Checkout Secure
Need more info? Call us +61 8 9335 1718

Transcan C

An excellent choice for professionals who need precise and high-quality 3D models.

  • High precision up to 0.035 mm
  • High resolution with 0.0375 mm
  • Dual scan range
  • 12MP color cameras

A professional 3D scanner for various industries

  • Dual scan range
  • 12 MP color cameras
  • Multi-Resolution Fusion
  • Intelligent operation ensures efficient capture of 3D data without manual intervention

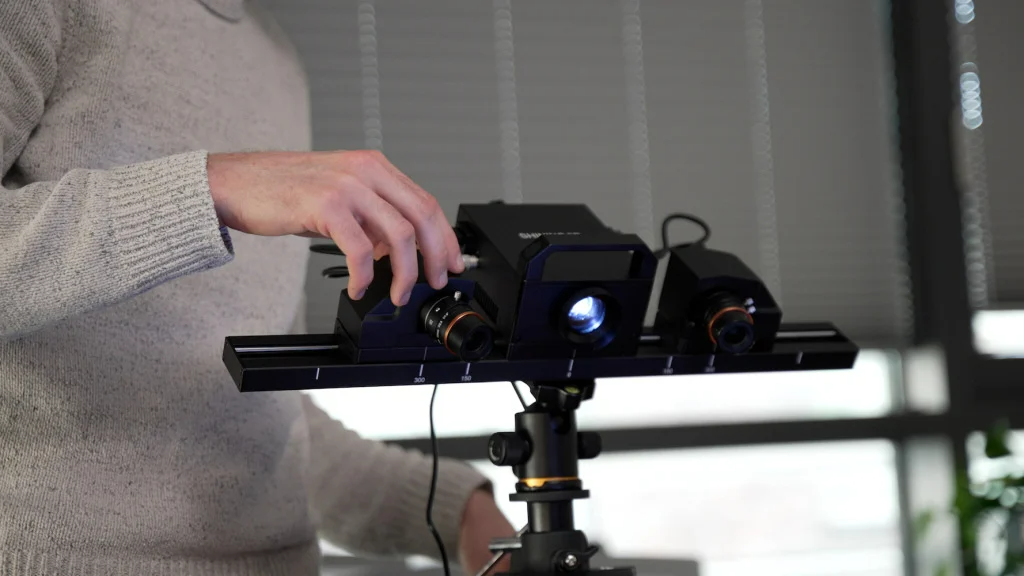

Dual scan range

The slide rail design allows easy switching of the scanning area between 150 × 96 mm and 300 × 190 mm , effectively meeting the requirements of scanning objects of different sizes.
    High-precision scan data

    High-precision scan data

    The scanner's compact design provides high accuracy of 0.035 mm at the inner position and 0.05 mm at the outer position. These results are valuable for many measurement applications.

      12 MP color cameras

      12 MP color cameras

      Two professional 12MP color cameras capture a detailed 24-bit color map and reproduce the authentic color of objects, making it ideal for capturing 3D color data for virtual representation.

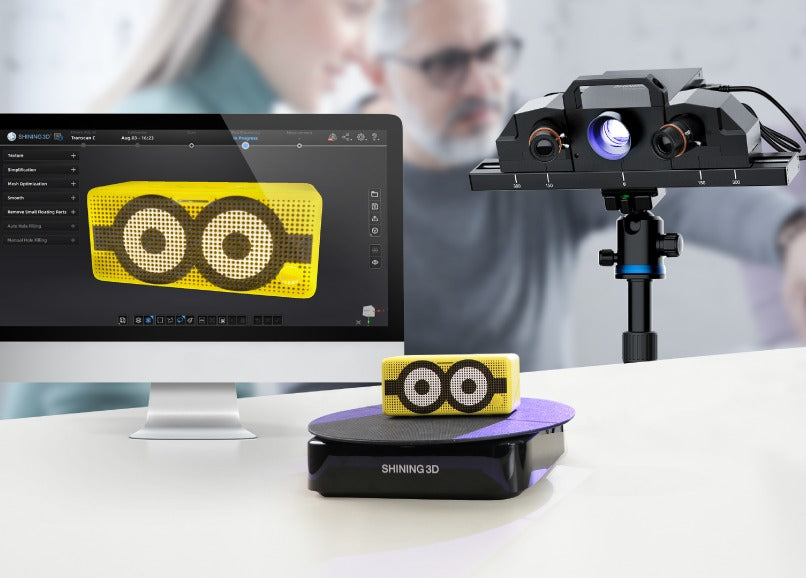

        Intelligent workflow

        Intelligent workflow

        The scanning process is fully automated using the turntable. Combined with the scanning software's stitching algorithm, this ensures efficient capture of 3D data without manual intervention.

        EXScan C Software

        Transcan C comes with EXScan C software, which is designed to be user-friendly while offering powerful features for 3D scanning and post-processing.


        Step-by-step instructions

        EXScan C features an intuitive user interface that simplifies the scanning process from calibration to 3D scanning and data processing.


        Powerful post-processing tools

        The EXScan C software features intelligent algorithms with a range of tools to clean, align, merge and optimize scans to create high-quality 3D models.


        Multi-Resolution Fusion

        The Multi-Resolution Fusion algorithm allows a mix of 3 resolution levels (high, medium or low) in one project for complex scanning tasks, which greatly improves efficiency without duplicating work.


        Compatible with common 3D software

        The EXScan C software can export models of waterproof and non-waterproof components in various file formats such as STL, OBJ and PLY, ensuring compatibility with the most popular 3D programs on the market for further design.

        Transcan C Tech Specifications

        • Single-shot accuracyup to 0.035 mm
        • Point spacingup to 0.0375 mm
        • Scan speedSingle shot <3s
        • Align ModeMarkers / feature / manual
        • Maximum FOV150 x 96 mm / 300 x 190 mm
        • Working Distance260 mm / 480 mm
