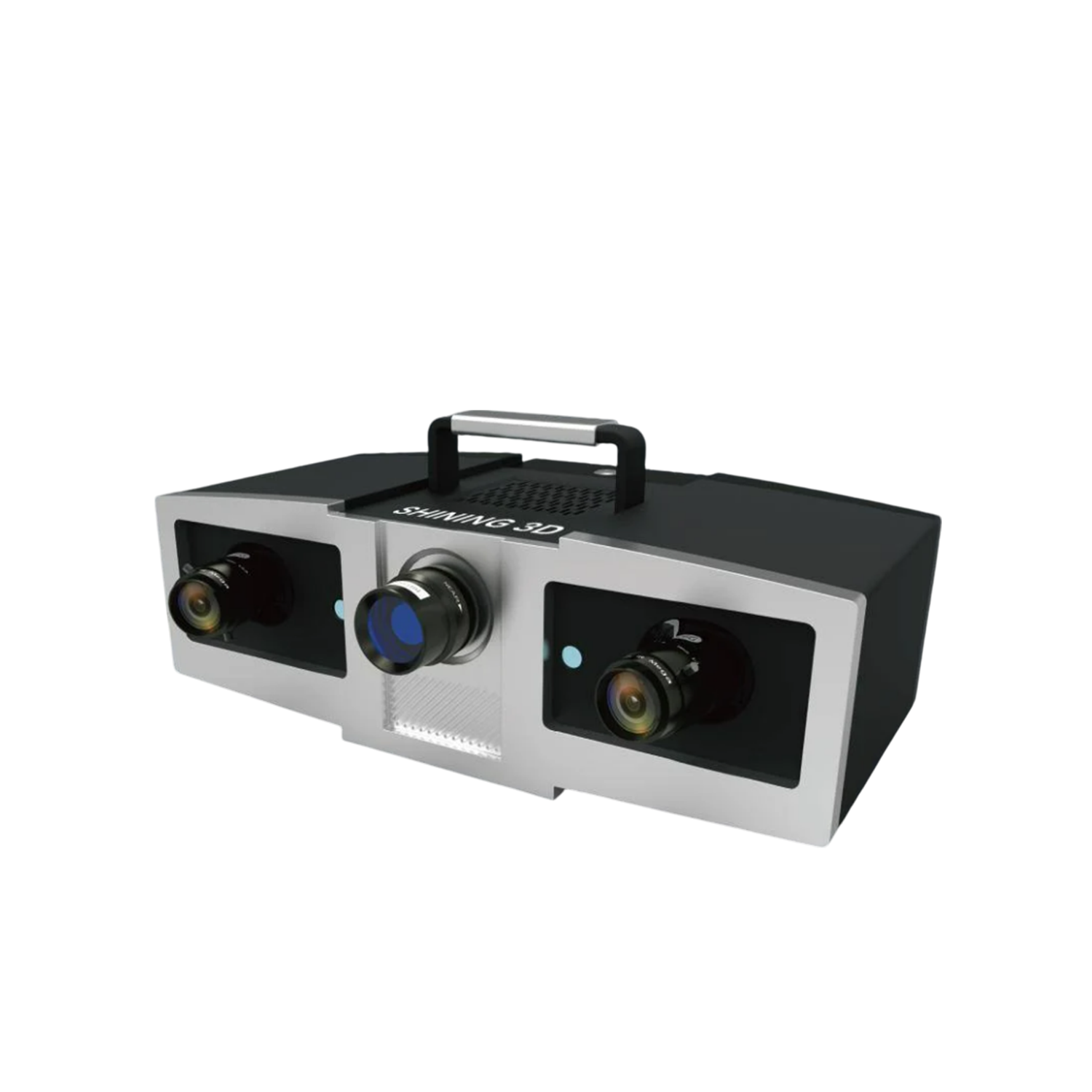

OptimScan 5M Plus
High-Precision 3D Inspection System
- High accuracy up to 0.005mm
- High resolution cameras
- Multiple scan ranges
Key Features
High Accuracy
Single shot accuracy can reach to 0.005mm, and it provides the function of environmental vibration detection and effectively ensures high-quality data and precision.
High Resolution

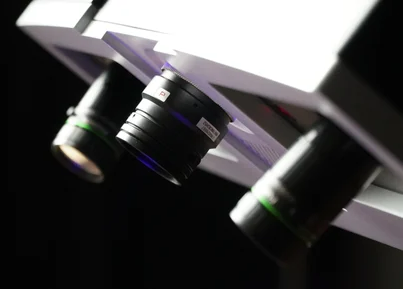

Three sets of 5-megapixel high-resolution cameras and 1080P projection are used to obtain high-precision features.
Multiple Scan Range
The system achieves different scanning ranges by switching between various lenses, ensuring finer scanning performance.
HDR Function
The HDR function helps scan high-contrast objects, such as black and white surfaces, to obtain complete data.
One-click Integration Module Function
The system integrates the "one-click" automatic markers alignment module and the GREC global deviation control module, which effectively reduces alignment errors and get high-quality data with high precision.
OptimScan Software
No subscriptions, no hidden fees.Your OptimScan-5M Plus comes with access to our powerful and continuously updated software. Scan as much as you want, all year long, with no hidden fees or extra costs.
Step-by-step Guidance
OptimScan Software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
AI Data Cleanup
OptimScan software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, and output more ideal results.
Adjustable Resolution
Unleash the full potential of the 5M Plus scanner, equipped with three sets of high-resolution industrial lenses. Paired with OptimScan software, 5M Plus allows for scans of varying precision levels, catering to diverse needs.
Swift Operation
Improve work efficiency with the rapid scanning speed of OptimScan-5M Plus scanner, which completes a single scan in less than 1.5 seconds, allowing for seamless workflow optimization.
Technical Data
- Single Scan RangeUp to 400 x 300 mm
- Single Shot Accuracy0.005 mm
- Point DistanceUp to 0.04 mm
- Working Distance560 mm
- Camera Resolution5.0 MP x 2
- Light SourceBlue light (LED)
- Scan Speed≤1.5 s
- Scanner Weight6.8 kg
- CertificationsCE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
- Accuracy CertificationVDl/VDE 2634 Part 3 (ISO 17025 certificated lab)
