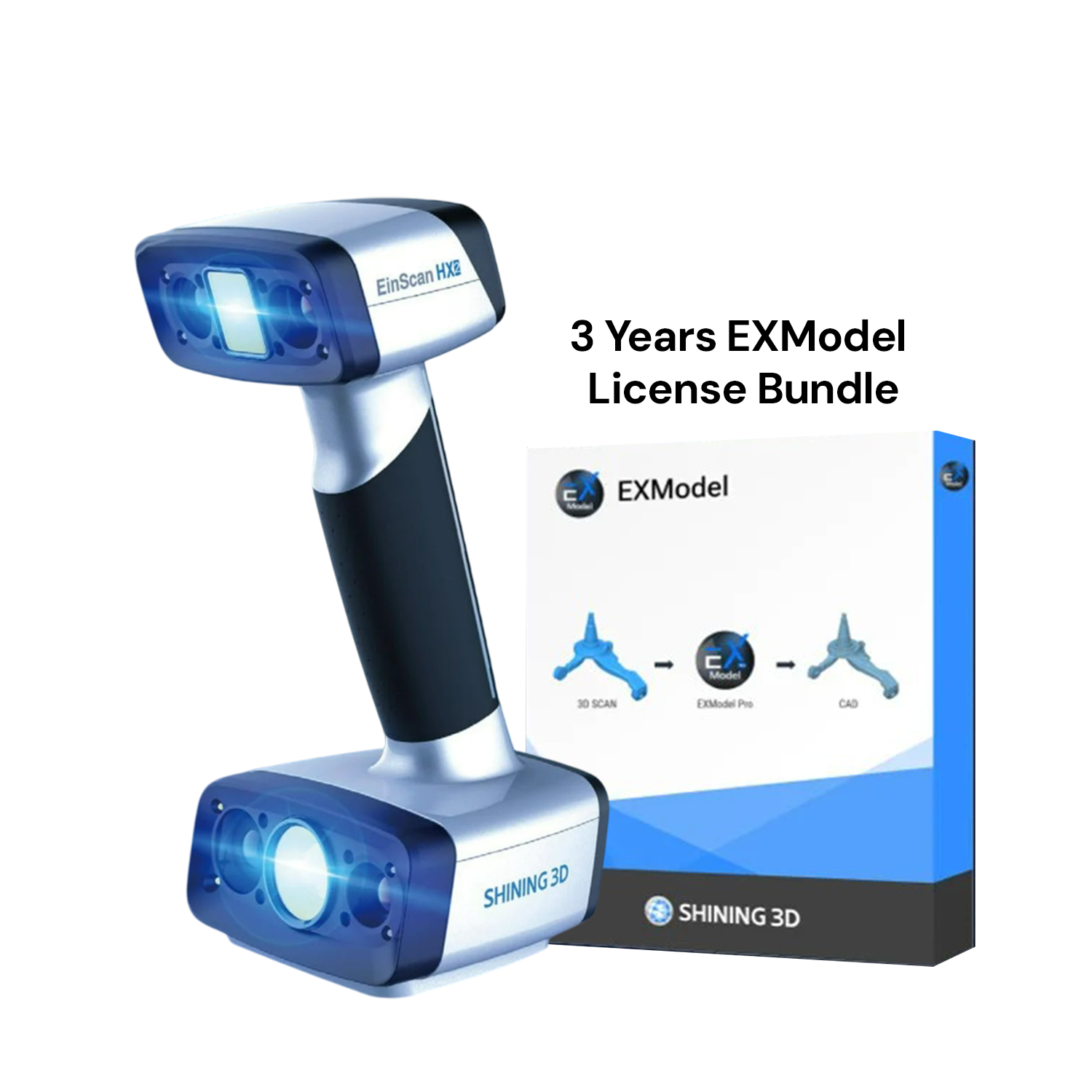

EinScan HX2 and EXModel 3 Years License Bundle( EN)
EXModel is a powerful gateway that simplifies CAD modeling, from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to transform a mesh into a professional-quality CAD solid model in just a few simple steps.
- EXModel: The bridge between 3D scanning mesh and CAD design
- EXModel Pro: All-in-one reverse engineering solution
Function Features Comparison
|
Feature |
EXModel Pro | EXModel |
|---|---|---|
| Mesh Editing (Fill Holes, Smoothing, Editing Boundaries) | ✓ | ✓ |
| Mesh Alignment (Coordinates/ N-points/ Fine Align) | ✓ | ✓ |
| Primitives Extraction/ Construct References | ✓ | ✓ |
| Cross Sections/ 2D Sketching/ 3D Sketching | ✓ | ✓ |
| Fit/ Manual Free Form Modelling/ Auto Surfacing | ✓ | ✓ |
| Export Features/ Profile as IGES/ STEP/ DXF | ✓ | ✓ |
| Extrude/ Revolved Surfaces | ✓ | ✓ |
| Helix/ Loft/ Sweep/ Fill Surface (Class A surfaces)/ Blend surface/ Flatten | ✓ | ✗ |
| Constraints/ Offset/ Patterns/Sketch Assist in 2D Sketch | ✓ | ✗ |
| Unroll Mesh & Roll 2D Sketch | ✓ | ✗ |
| Trim to Solid/ Cut/ Combine/ Intersect/ Fillet/ Chamfer/ Patterns | ✓ | ✗ |
| Hybrid Modelling (Free-Form & Parametric) | ✓ | ✗ |
| Transfer Design and Feature Tree to other Packages | ✓ | ✗ |
| Compare | CAD vs Mesh, Mesh vs Mesh | CAD vs Mesh |
Retaining the hybrid laser and blued LED technology, the EinScan HX2 excels in accuracy, versatility, and ease of use.
- Accuracy up to 0.04 mm
- Minimum point distance of 0.05 mm
- 1,600,000 points/s and 120 FPS under laser scan mode
- Full Color
A Hybrid and Versatile Solution
The EinScan HX2 enhances its predecessor's features, now boosting 13 crossed blue laser lines for more detailed scanning and an increased frame rate of 120 FPS for faster scanning.
- Hybrid Blue Laser & LED Light
- High Efficiency
- High Efficiency
- Reliable Results
- High Accuracy & Detail
- Portable & Easy Operation
- Full Color
- Reverse Engineering Bundle
Hybrid Blue Laser & LED Light
High Efficiency
High Accuracy & Detail
Portable & Easy Operation
Full Color
Special Pricing for Reverse Engineering Bundle
EXScan HX Software
Your EinScan HX2 comes with access to our powerful and continuously updated EinScan software. Scan as much as you want, all year long, with no hidden fees or extra costs.
Step-by-step Guidance
EXScan HX software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
Smart Data Process
EXScan HX software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, and output more ideal results
Regular Updates
Ensure your software stays up to date with regular updates. Stay in the loop with updates, which collaborate to enhance your hardware performance.
Supports Multi-languages
In addition to English, our software supports German, Japanese, Korean, Russian, French, Spanish, and Traditional Chinese. This list is continuously being updated
EinScan HX2 Tech Specs
- AccuracyUp to 0.04 mm
- Volumetric Accuracyup to 0.04 + 0.06 mm/m
- Point Distance0.25 ~ 3 mm
- Scan SpeedUp to 1,600,000 points/s
- Max. FOV420 x 440 mm
- Working Distance470 mm
- Align ModeFeature / Markers / Texture / Hybrid
- Light SourceBlue LED / 13 Blue Laser Crosses
