Major Tech MT760 100A AC/DC Clamp Meter

SKU: MT760

Not Available

Freight Charge for orders under $300 ex. GST / Free delivery for orders which exceed $300 ex. GST.

• If you require your order urgently, then you can choose express delivery - price TBC at point of sale.

You are most welcome to use your own courier if preferred and there is no admin fee for this.

Need more info? Call us +61 8 9335 1718

  • CAT III 300V and CAT II 600V
  • Current measurement from 1mA
  • Measures AC and DC current to 100 Amps
  • Ø17mm Cable Clamp size
  • 2000 count backlit LCD display
  • Measurement of DC voltage and AC voltage up to 600V
  • Capacitance to 20mF
  • VFC – Variable Frequency Drive voltage value
  • Microprocessor Zero adjustment
  • NCV – Non-Contact Voltage Detector
  • Continuity buzzer and Diode Test
  • Data Hold function
  • Auto Power Off

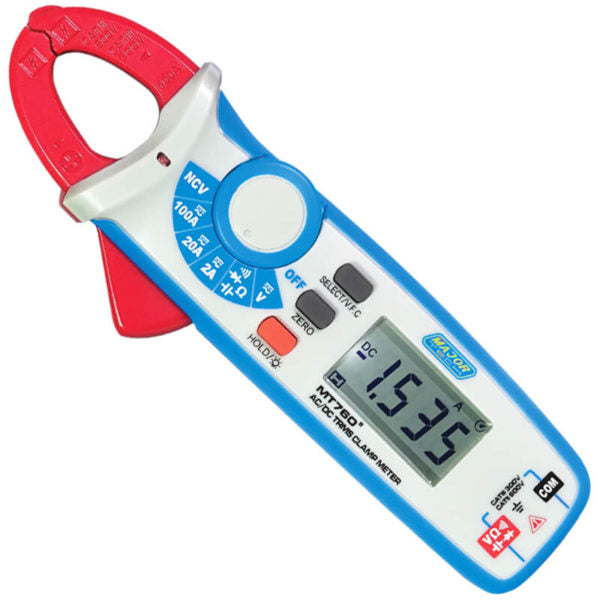

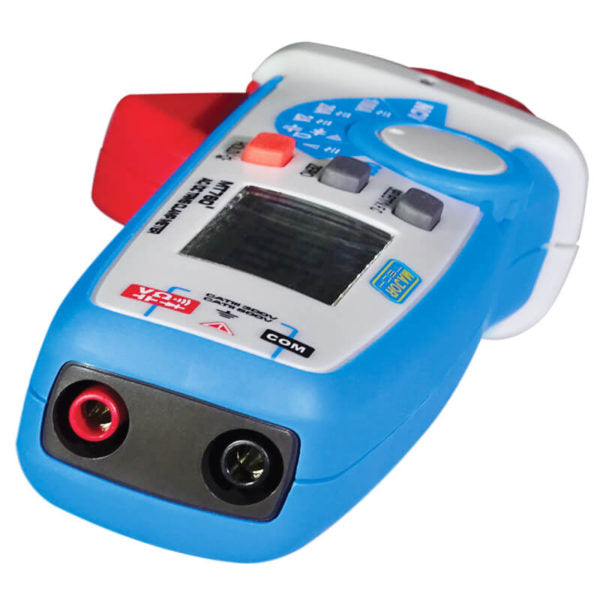

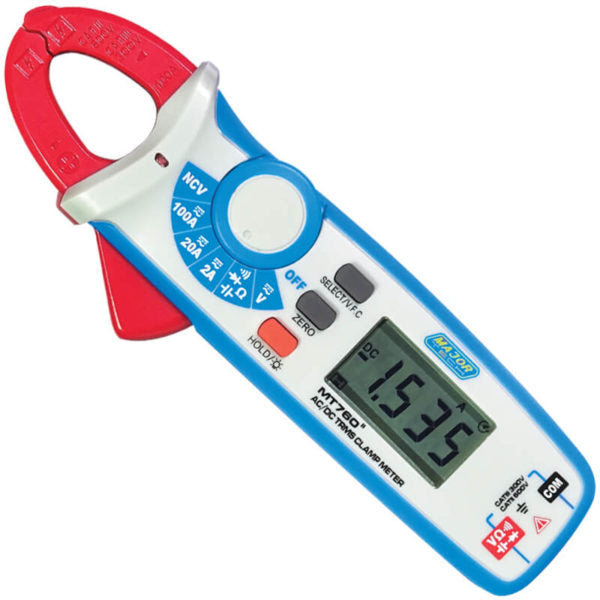

The MT760 is a CAT III 300V, 2000 count True RMS 100A AC/DC digital clamp meter with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display. The meter measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function. The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Zero/Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment and Non- Contact voltage detection. Housed in a modern double moulded rubber housing.

Specifications

Function Range Resolution Accuracy
DC Current 2.000A – 100.0A 1mA ±(2% + 8 Digits)
AC Current 2.000A – 100.0A 1mA ±(3% + 10 Digits)
DC Voltage 200.0mV – 600V 0.1mV ±(0.7% + 5 Digits)
AC Voltage 2.000V – 600V 1mV ±(1% + 3 Digits)
AC Voltage VFD 200.0V – 600V 100mV ±(4% + 3 Digits)
Resistance 200.0Ω – 20.00MΩ 0.1Ω ±(1% + 2 Digits)
Capacitance 2nF – 20.00mF 1pF ±(4% + 5 Digits)
True RMS Measurements ACA, ACV
AC Bandwidth 50Hz to 400Hz
Digital Display 2000
Non-Contact Voltage (NCV) Yes
Overrange Indication Yes
Continuity Yes
Diode Test Yes
Jaw Size 17mm
Input Impedance >1MΩ DCV & >1MΩ VAC
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Over moulded case
Low Battery Indication Yes
Batteries 2 x AAA
Weight 170g
Dimensions 175 x 60 x 33.5mm
Safety Specs IEC61010-1 CAT II 600V



Safety Ratings



Includes:

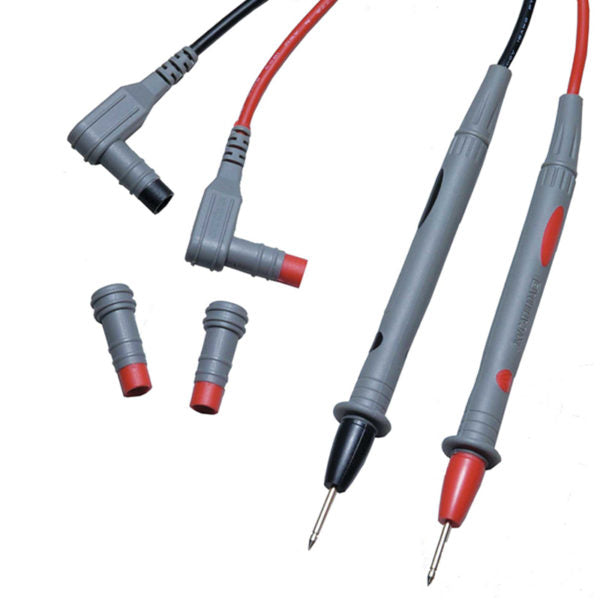

  • Test Leads

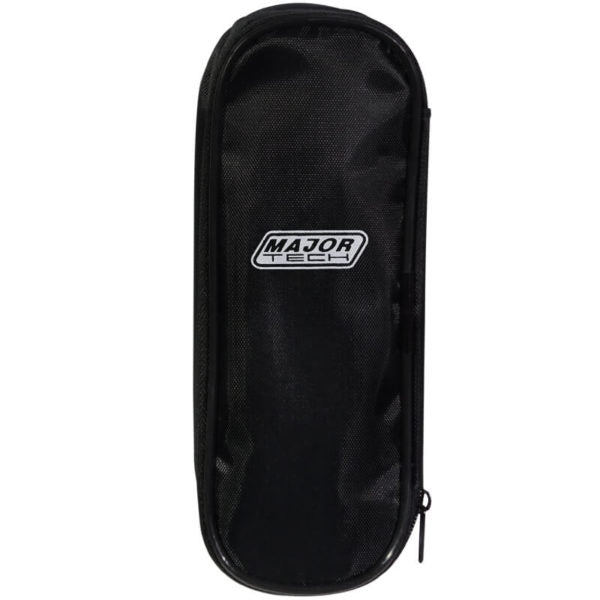

  • Carrying Case

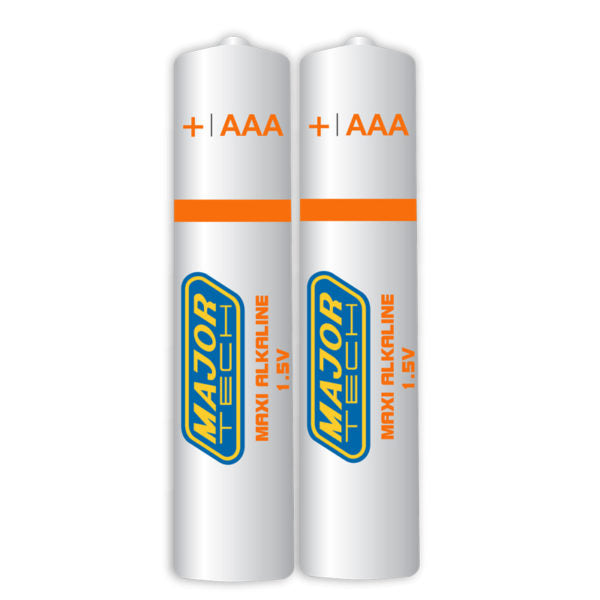

  • 2 x AAA Batteries
  • Instruction Manual

Downloads

MT760 Instruction Manual

Shipping This Item Ships from Fremantle, Perth, Western Australia
Please allow 2 - 10 days for your order to arrive.

Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!

Returns are easy.

simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!

Description

  • CAT III 300V and CAT II 600V
  • Current measurement from 1mA
  • Measures AC and DC current to 100 Amps
  • Ø17mm Cable Clamp size
  • 2000 count backlit LCD display
  • Measurement of DC voltage and AC voltage up to 600V
  • Capacitance to 20mF
  • VFC – Variable Frequency Drive voltage value
  • Microprocessor Zero adjustment
  • NCV – Non-Contact Voltage Detector
  • Continuity buzzer and Diode Test
  • Data Hold function
  • Auto Power Off

The MT760 is a CAT III 300V, 2000 count True RMS 100A AC/DC digital clamp meter with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display. The meter measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function. The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Zero/Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment and Non- Contact voltage detection. Housed in a modern double moulded rubber housing.

Specifications

Function Range Resolution Accuracy
DC Current 2.000A – 100.0A 1mA ±(2% + 8 Digits)
AC Current 2.000A – 100.0A 1mA ±(3% + 10 Digits)
DC Voltage 200.0mV – 600V 0.1mV ±(0.7% + 5 Digits)
AC Voltage 2.000V – 600V 1mV ±(1% + 3 Digits)
AC Voltage VFD 200.0V – 600V 100mV ±(4% + 3 Digits)
Resistance 200.0Ω – 20.00MΩ 0.1Ω ±(1% + 2 Digits)
Capacitance 2nF – 20.00mF 1pF ±(4% + 5 Digits)
True RMS Measurements ACA, ACV
AC Bandwidth 50Hz to 400Hz
Digital Display 2000
Non-Contact Voltage (NCV) Yes
Overrange Indication Yes
Continuity Yes
Diode Test Yes
Jaw Size 17mm
Input Impedance >1MΩ DCV & >1MΩ VAC
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Over moulded case
Low Battery Indication Yes
Batteries 2 x AAA
Weight 170g
Dimensions 175 x 60 x 33.5mm
Safety Specs IEC61010-1 CAT II 600V



Safety Ratings



Includes:

  • Test Leads
  • Carrying Case
  • 2 x AAA Batteries
  • Instruction Manual

Downloads

MT760 Instruction Manual
